Producto
Puls
QS20.244
Solicitar una oferta
Derechos autor imagen: Puls

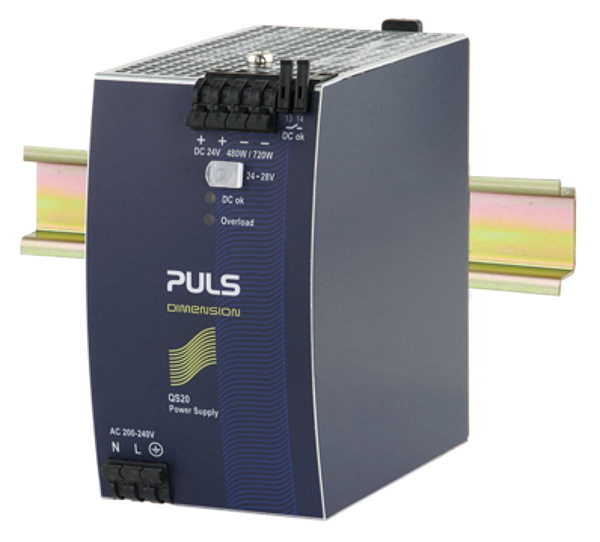

Puls QS20.244
DIN-rail power supplies for 1-phase systems
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
200-240V Input. Efficiency up to 94,5%. Negligibly low input inrush current. 50% Power reserves available up to 4s. Full output power between -25 and +60°C. Quick-connect spring-clamp terminals
Parámetros técnicos
| AC-Input Voltage: | AC 200-240V (± 15%) |
| DC-Input Voltage: | |
| EN61000-3-2(PFC-Norm): | not fulfilled |
| Power Factor: | 0.5 |
| Input Inrush Current Limitation: | active |
| Peak turn on current: | 40A |
| External Input Fuse Recommendation: | min. B-10A / C-6A |
| Nominal Voltage: | 24Vdc |
| Adjustment Range: | 24-28V |
| Output Current Range: | 20-17A |
| Output Current: | 17A at 28V 20A at 24V |
| Output Power: | 480W |
| Power Reserves: | 50% BonusPower® |
| max. Ripple and Noise Voltage: | 100mVpp |
| Size (WxHxD): | 70mm x 124mm x 127mm |
| Weight per Piece (excluding packing): | 880g |
| Operat. Temperature Range: | -25°C ... +70°C |
| Derating: | 12W/°C at >+60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 94.5% |
| Power Losses, typ.: | 28.3W |
| MTBF SN 29500 @ 40°C (h): | 577.000h |
| Connection method: | Spring-clamp terminals |
| DC-OK Signal: | yes |
| V1): | Peak current at 230Vac, independent of temperature |
