Producto
Puls
QS10.DNET
Solicitar una oferta
Derechos autor imagen: Puls

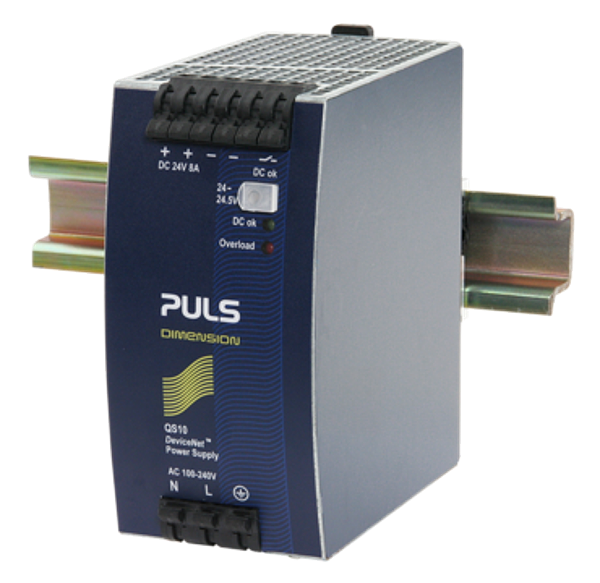

Puls QS10.DNET
DeviceNet power supply
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
100-240V Wide-range input, active PFC. Efficiency up to 92,7%, SEMI-F47-200 approved. Negligibly low input inrush current. DeviceNet approved. Full output power between -25 and +60°C. Spring-clamp terminals, DC-OK contact
Parámetros técnicos
| AC-Input Voltage: | AC 100-240V (± 15%) |
| DC-Input Voltage: | DC 110V-150V (-20%/+25%) |
| EN61000-3-2(PFC-Norm): | fulfilled |
| Harmonic Correction: | active |
| Power Factor: | 0.92 |
| Input Inrush Current Limitation: | active |
| Peak turn on current: | 4A/7A (D1) |
| External Input Fuse Recommendation: | min. B-6A / C-4A |
| Nominal Voltage: | 24Vdc |
| Adjustment Range: | 24-24.5V |
| Output Current Range: | 8-8A |
| Output Current: | 8A at 24.5V 8A at 24V |
| Output Power: | 192W |
| max. Ripple and Noise Voltage: | 50mVpp |
| Size (WxHxD): | 60mm x 124mm x 117mm |
| Weight per Piece (excluding packing): | 900g |
| Operat. Temperature Range: | -25°C ... +70°C |
| Derating: | 5W/°C at >+60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 93.4% |
| Power Losses, typ.: | 13.6W |
| MTBF SN 29500 @ 40°C (h): | 581.000h |
| Connection method: | Spring-clamp terminals |
| DC-OK Signal: | yes |
| D1): | Peak current at 120Vac/230vac, independent of temperature |
