Producto
Puls
QS10.241-D1
Solicitar una oferta
Derechos autor imagen: Puls

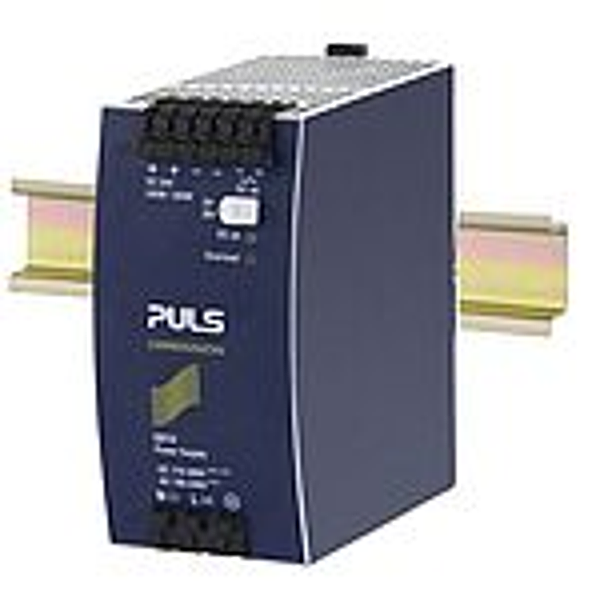

Puls QS10.241-D1
DIN-rail power supplies for 1-phase systems
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
Wide AC and DC-Input range. Efficiency up to 93,5%. Negligibly low input inrush current. 50% Power reserves available up to 4s. Full output power between -25 and +60°C. Spring-clamp terminals, DC-OK contact
Parámetros técnicos
| AC-Input Voltage: | AC 100-240V (± 15%) |
| DC-Input Voltage: | DC 110V-300V (± 20%) |
| EN61000-3-2(PFC-Norm): | fulfilled |
| Harmonic Correction: | active |
| Power Factor: | 0.92 |
| Input Inrush Current Limitation: | active |
| Peak turn on current: | 4A/7A (D1) |
| Nominal Voltage: | 24Vdc |
| Adjustment Range: | 24-28V |
| Output Current Range: | 10-9A |
| Output Current: | 9A at 28V 10A at 24V |
| Output Power: | 240W |
| Power Reserves: | 50% BonusPower® |
| max. Ripple and Noise Voltage: | 50mVpp |
| Size (WxHxD): | 60mm x 124mm x 117mm |
| Weight per Piece (excluding packing): | 900g |
| Operat. Temperature Range: | -25°C ... +70°C |
| Derating: | 6W/°C at >+60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 93.5% |
| Power Losses, typ.: | 19.1W,16.7W |
| MTBF SN 29500 @ 40°C (h): | 581.000h |
| Connection method: | Spring-clamp terminals |
| DC-OK Signal: | yes |
| D1): | Peak current at 120Vac/230vac, independent of temperature |
