Producto
Puls
PISA11.404
Solicitar una oferta

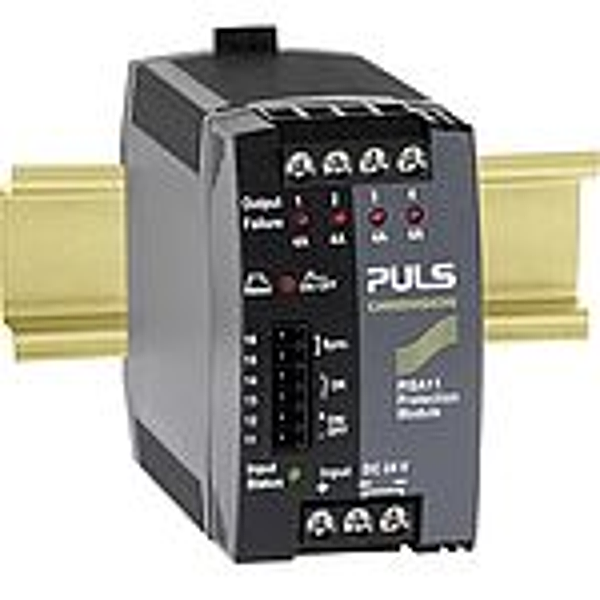

Derechos autor imagen: Puls
Puls PISA11.404
Protection module
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
One input and four current controlled outputs. Ensures sufficient supply voltage for critical loads even in the, event of an fault. Protects small cable sizes against overload. Hassle-free turn-on of loads with large Input capacitors. Wide temperature range between -25°C and +70°C. On/Off function of outputs. Compact design, width only 45mm. Remote monitoring and control function
Parámetros técnicos
| DC-Input Voltage: | DC 18V-30V |
| DC Input Current at no load, typ.: | 43mA |
| Required Input Voltage for turning on the outputs, typ: | 21,4Vdc |
| Turn-on Delay of Outputs: | 270ms |
| Input voltage protection level min./max.: | 21,0-21,8Vdc |
| Adjustment Range: | 24-28V |
| Output Current: | 4A , 4A , 4A , 4A |
| Output Current (all 4 outputs together): | 16A |
| Output current limination min./max.: | 16,6/23,6A |
| Shutdown-times at short circuit, typ: | 10,0ms |
| Voltage drop, typ.: | 101: |
| Size (WxHxD): | 45mm x 75mm x 91mm |
| Weight per Piece (excluding packing): | 120g |
| Operat. Temperature Range: | -25°C ... +70°C |
| Mounting Method: | Din-Rail |
| Power Losses, typ.: | 1,8W |
| Power Losses no Load: | 1,0W |
| MTBF SN 29500 @ 40°C (h): | 2.114.000h |
| Connection method: | Screw Terminals |
