Producto
Puls
ML50.100
Solicitar una oferta

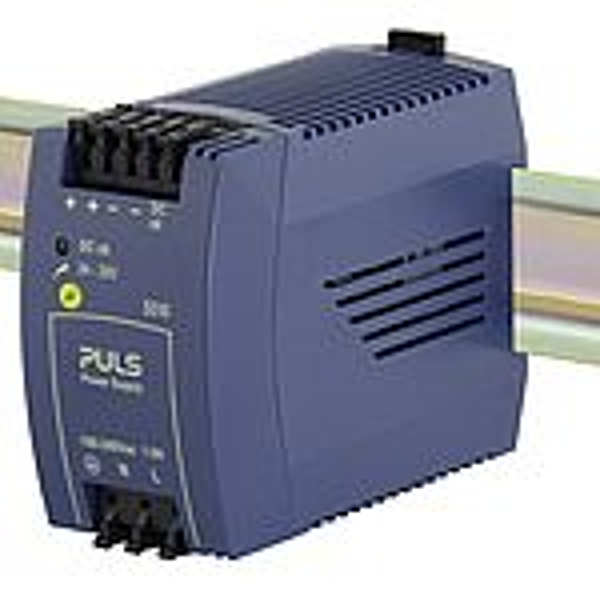

Derechos autor imagen: Puls
Puls ML50.100
DIN-rail power supplies for 1-phase systems
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
100-240V Wide-range input. Efficiency up to 89%. SEMI-F47-200 approved. DC-OK signal output. Full output power between -10 and +60°C. Quick-connect spring-clamp terminals Adapter for Wall Mounting includet
Parámetros técnicos
| AC-Input Voltage: | AC 100-240V (-15%/+10%) |
| DC-Input Voltage: | DC 110V-300V (-25%/+30%) |
| EN61000-3-2(PFC-Norm): | fulfilled |
| Power Factor: | 0.52 |
| Input Inrush Current Limitation: | NTC |
| Peak turn on current: | 17A/35A (B1) |
| External Input Fuse Recommendation: | min. B-10A / C-6A |
| Nominal Voltage: | 24Vdc |
| Adjustment Range: | 24-28V |
| Output Current Range: | 2.1-1.8A |
| Output Current: | 1.8A at 28V 2.1A at 24V |
| Output Power: | 50W |
| max. Ripple and Noise Voltage: | 50mVpp |
| Size (WxHxD): | 45mm x 75mm x 91mm |
| Weight per Piece (excluding packing): | 240g |
| Operat. Temperature Range: | -10°C ... +70°C |
| Derating: | 1.3W/°C at >+60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 89.0% |
| Power Losses, typ.: | 6.2W |
| MTBF SN 29500 @ 40°C (h): | 2.613.000h |
| Connection method: | Spring-clamp terminals |
| DC-OK Signal: | yes |
| B1): | Peak current at 120Vac/230Vac, ambient temperature of +40°C and cold start |
