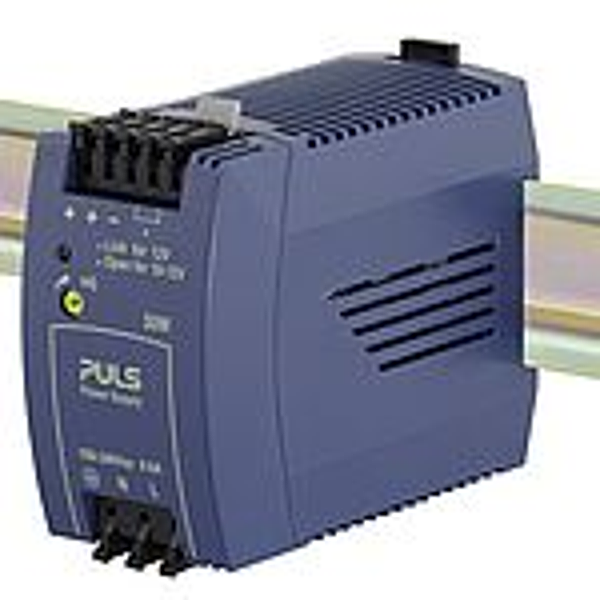

ML30.102
DIN-rail power supplies for 1-phase systems
100-240V Wide-range input. Efficiency up to 84%. Low output ripple. NEC Class 2 Listed. Full output power between -10 and +60°C. Quick-connect spring-clamp terminals Adapter for Wall Mounting includet
AC-Input Voltage: | AC 100-240V (-15%/+10%) |
DC-Input Voltage: | DC 110V-300V (-20%/+25%) |
EN61000-3-2(PFC-Norm): | fulfilled |
Power Factor: | 0.53 |
Input Inrush Current Limitation: | NTC |
Peak turn on current: | 17A/35A (B1) |
External Input Fuse Recommendation: | min. B-10A / C-6A |
Nominal Voltage: | 12Vdc |
Adjustment Range: | 10-12V |
Output Current Range: | 3-2.5A |
Output Current: | 2.5A at 12V 3A at 10V |
Output Power: | 30W |
max. Ripple and Noise Voltage: | 10mVpp |
Size (WxHxD): | 45mm x 75mm x 91mm |
Weight per Piece (excluding packing): | 250g |
Operat. Temperature Range: | -10°C ... +70°C |
Derating: | 0.8W/°C at >+60°C |
Mounting Method: | DIN-Rail |
Efficiency, typ.: | 84.0% |
Power Losses, typ.: | 5.8W |
MTBF SN 29500 @ 40°C (h): | 650.000h |
Connection method: | Spring-clamp terminals |
B1): | Peak current at 120Vac/230Vac, ambient temperature of +40°C and cold start |
