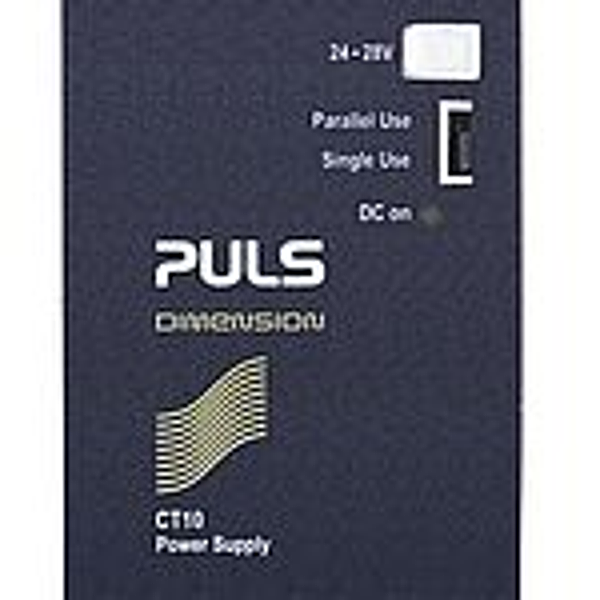

CT10.241-C1
DIN-rail power supplies for 3-phase systems
380-480V Wide-range input and passive PFC. Efficiency up to 92,9%. Conformal coated. Negligibly low input inrush current. 20% Power reserves can be used continuously up to +45°C. Full output power between -25 and +60°C. Adjustable to parallel mode for load sharing
AC-Input Voltage: | AC 380-480V (-15%/+20%) |
DC-Input Voltage: | |
EN61000-3-2(PFC-Norm): | fulfilled |
Harmonic Correction: | PFC |
Power Factor: | 0.53 |
Input Inrush Current Limitation: | active |
Peak turn on current: | 4A/4A (C2) |
External Input Fuse Recommendation: | min. B-6A / C-3A |
Nominal Voltage: | 24Vdc |
Adjustment Range: | 24-28V |
Output Current Range: | 10-8.6A |
Output Current: | 8.6A at 28V 10A at 24V |
Output Power: | 240W |
Power Reserves: | 20% Power Boost |
max. Ripple and Noise Voltage: | 50mVpp |
Size (WxHxD): | 62mm x 124mm x 117mm |
Weight per Piece (excluding packing): | 750g |
Operat. Temperature Range: | -25°C ... +70°C |
Derating: | 6W/°C at >+60°C |
Mounting Method: | DIN-Rail |
Efficiency, typ.: | 92.8% |
Power Losses, typ.: | 18.6W |
MTBF SN 29500 @ 40°C (h): | 975.000h |
Connection method: | Screw terminals |
C2): | Peak current at 3x400vac/ 3x480Vac, independent of temperature |
