9SIR051
IR-P10-3QD

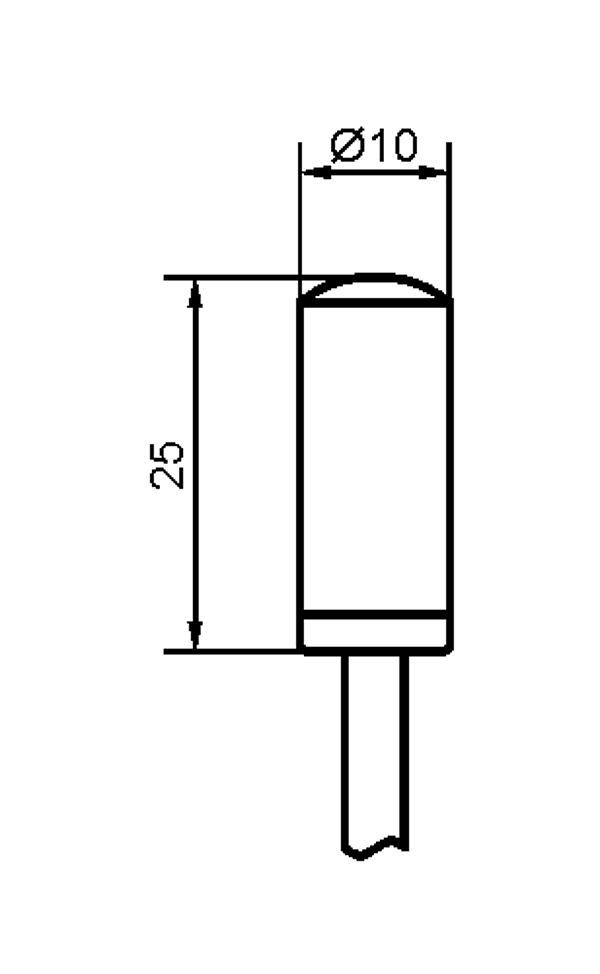

Sensor TSP, Sensor heads type TSP, round plastic housing 10 mm, short type. Sensor P10, Sensor heads type P10, round plastic housing 10 mm, standard type
Transmitters and receivers for PANTRON infrared photoelectrics. Suitable for all amplifier series (except ISL). One transmitter and one receiver required per each channel. Transmitters are available in 3 different versions. Receivers come with built-in pre-amplifier and daylight compensation. Round plastic housing for mounting on screw clamp. ISH1, or mounting clip. ISH2. Resistant to petrol, oil and many solvents. Very short round plastic housing for use in micro constructions. Resistant to petrol, oil and many solvents. Other cable lengths are available upon request. Round plastic housing, 10 mm. Sensor heads type P10. Small design. Extremely dirt-resistant. High penetration. Easy adjustment
Wavelength: | 880 nm |
Opening angle / transmit power standard: | 10° / 40 mwsr |
Opening angle / transmit power hp: | 20° / 70 mwsr |
Opening angle / transmit power ita: | 6° / 350 mwsr |
Connection: | 2-pin pvc cable 3-pin circular plug m8 |
Housing material: | Polyamide |
Protection class: | Ip 67 |
Operating temperature: | -25 °c ... +65 °c (-13 °f ... +149 °f) |
Storage temperature: | -40 °c ... +80 °c (-40 °f ... +176 °f) |
Vibration: | 10...55 hz, 1,5 mm |
Shock: | 30 g |
Wavelength: | 880 nm |
Opening angle: | 25° |
Light immunity: | 60.000 lux |
Connection: | Shielded pvc cable 3-pin circular plug m8 |
Housing material: | Polyamide |
Protection class: | Ip 67 |
Operating temperature: | -25 °c ... +65 °c (-13 °f ... +149 °f) |
Storage temperature: | -40 °c ... +80 °c (-40 °f ... +176 °f) |
Vibration: | 10...55 hz, 1,5 mm |
Shock: | 30 g |
ECCN: | |
País de origen: | |
EAN: | |
Peso: | 0,00 kg |
Longitud: | 0,00 m |
Anchura: | 0,00 m |
Altura: | 0,00 m |
