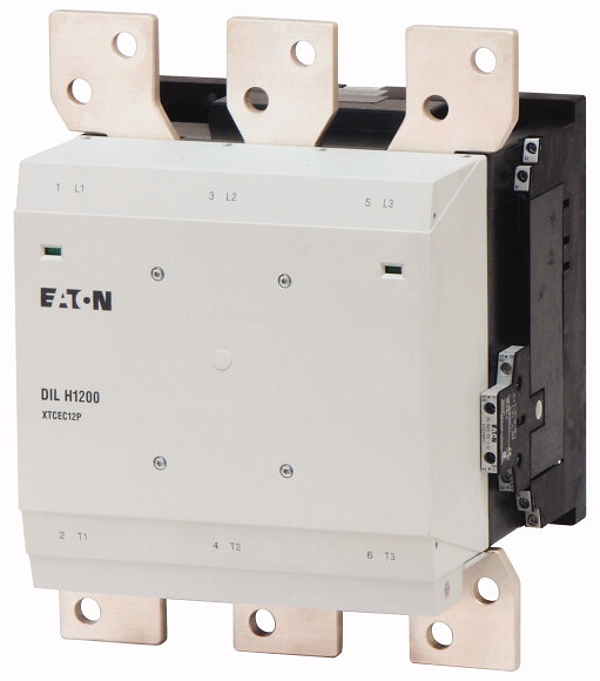

Eaton 151242

DILH1200/22(RAW250)

Contactor, Ith =Ie: 1450 A, RAW 250: 230 - 250 V 50 - 60 Hz/230 - 350 V DC, AC and DC operation, Screw connection

Descripción

Alternate Catalog No. XTCEC12P22B. Contactor, Application: Mains contactors for resistive loads from 1000 A, AC -1 contactors greater than 1000 A, Utilization category: AC-1: Non-inductive or slightly inductive loads, resistance furnaces, Connection technique: Screw connection, Rated operational current AC-1 Conventional free air thermal current, 3 pole, 50 - 60 Hz Open at 40 °C: Ith =Ie= 1450 A, Rated operational current AC-1 Conventional free air thermal current, 1 pole open: Ith= 3000 A, For use with: DILM820-XHI…, Instructions: integrated suppressor circuit in actuating electronics, 660 V, 690 V or 1000 V: not directly reversing, Voltage AC/DC: AC and DC operation
