Producto
Beckhoff
KM2774
Solicitar una oferta
Derechos autor imagen: Beckhoff

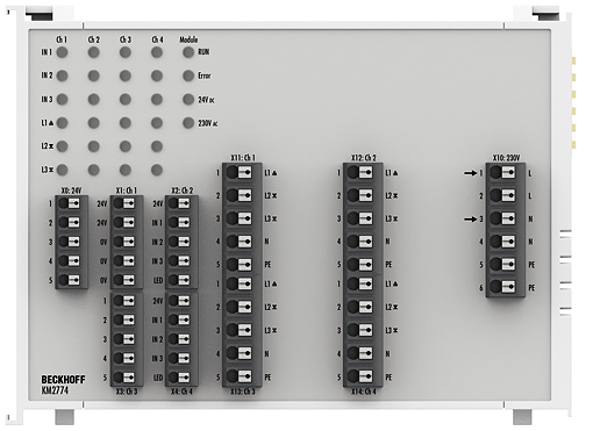

Beckhoff KM2774
KM2774 | Triac output for 4 blind motors
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
The compact KM2774 module enables direct connection of up to four AC motors with reversal of rotation direction and a further travel function. For each motor, three mutually locked Triac outputs with 230 V AC and up to 1.5 A are available. The outputs are protected against overload. An adjustable overcurrent limit protects the motor from damage. The typical control signals can be wired via 24 V inputs. Status and error messages are available via the fieldbus and via LED at the module.
Parámetros técnicos
| Number of outputs: | 4 x 3 make contacts |
| Load type: | ohmic, inductive |
| Max. output current: | 1.5 A per channel |
| Nominal voltage: | 80…230 V AC |
| Overcurrent limit: | adjustable |
| Signal input: | 12 x 24 V DC |
| Surge voltage protection: | > 275 V AC |
| Peak current: | 40 A (16 ms), 3 A (30 s) |
| Leakage current (OFF state): | typ. 0.8 mA, max. 1.5 mA |
| Switching times: | 0.1…10 ms, zero crossing |
| Switch-off time: | T/2 |
| Maximum residual voltage: | 1.5 V |
| Electrical isolation: | 500 V (K-bus/field voltage), 3,750 V AC (1 min.) |
| Current consumption power contacts: | – (no power contacts) |
| Current consumpt. K-bus: | typ. 30 mA |
| Frequency range: | 50 Hz |
| Bit width in the process image: | 3 byte input/output |
| Configuration: | no address or configuration setting |
| Dimensions (W x H x D): | 132 mm x 100 mm x 38 mm |
| Weight: | approx. 270 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals: | CE |
