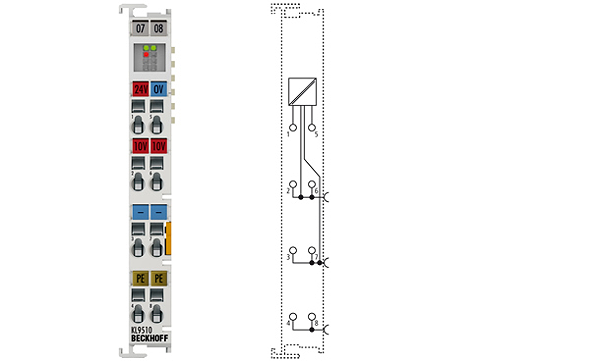

Beckhoff KL9510
KL9510 | Power supply terminal 10 V DC
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
The KL9510 power supply terminal generates an output voltage of 10 V DC from the (24 V DC) input voltage, which can be accessed at the terminal. The following Bus Terminals are also supplied with this voltage via the power contacts. The power LEDs indicate the terminal’s operating state. The input voltage and the output voltage U. 0, are not electrically isolated.
Parámetros técnicos
| Input voltage: | 24 V DC (-15 %/+20 %) |
| Output voltage: | 10 V DC ±1 % |
| Output current: | 0.5 A |
| Diagnostics in the process image: | – |
| Current consumption K-bus: | – |
| Short-circuit-proof: | yes |
| Electrical isolation: | – |
| Residual ripple: | < 5 mV |
| Special features: | stabilised output voltage, overcurrent LED |
| Weight: | approx. 65 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals: | CE, UL, Ex |
