KL9060

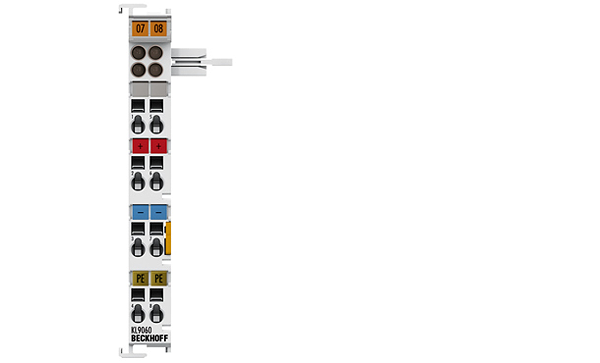

KL9060 | Adapter terminal for KL8001 power terminals
The KL9060 adapter terminal is attached to the end of the Bus Terminal block in the same way as the standard terminal KL9010. The block is terminated with the KL9060 and provides the opportunity to connect one or more power terminals of the KL8001 series. In the KL9060 the K-bus signals are fed into a ribbon cable together with the 24 V DC for the power contacts.
Number of power terminals: | up to 10 KL8001 |
Current load: | ≤ 10 A |
Power LED: | – |
Defect LED: | – |
Type of connection: | 1 x 10-pin ribbon cable connector |
Distance between stations: | – |
Starting current: | – |
Current consumpt. K-bus: | – |
Current supply K-bus: | – |
Power contacts: | 24 V DC (-15 %/+20 %)/1.4 A max., short-circuit-proof |
Nominal voltage: | 24 V DC (-15 %/+20 %) |
Electrical isolation: | 500 V (power contact/supply voltage/K-bus) |
Configuration possibility: | none, automatic |
PE contact: | yes |
Shield connection: | – |
Bit width in the process image: | – |
Electrical connection to DIN rail: | – |
Special features: | connection to KL8001 via 20-pin flat ribbon plug |
Weight: | approx. 65 g |
Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos.: | IP 20/variable |
Approvals: | CE |
ECCN: | |
País de origen: | |
EAN: | |
Peso: | 0,00 kg |
Longitud: | 0,00 m |
Anchura: | 0,00 m |
Altura: | 0,00 m |
