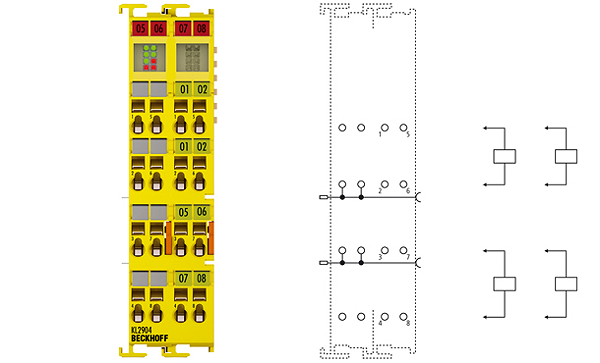

KL2904
KL2904 | 4-channel digital output terminal, TwinSAFE, 24 V DC
The KL2904 safety Bus Terminal is a digital output terminal with four channels. It switches 24 V DC actuators with up to 0.5 A current per channel. If the Bus Terminal detects a fault, it switches off automatically (fail stop).
Connection technology: | 2-wire |
Number of outputs: | 4 |
Protocol: | TwinSAFE/Safety over EtherCAT |
Fault response time: | ≤ watchdog time (parameterisable) |
Current consumption power contacts: | load-dependent |
Current consumption K-bus: | 250 mA |
Installation position: | horizontal |
Safety standard: | DIN EN ISO 13849-1:2008 (Cat. 4, PL e) and EN 61508:2010 (SIL 3) |
Weight: | approx. 100 g |
Protection class: | IP 20 |
Approvals/markings: | Overview of TwinSAFE Certifications (PDF) |
Ex-Marking: | II 3 G Ex nA IIC T4 Gc |
ECCN: | |
País de origen: | |
EAN: | |
Peso: | 0,00 kg |
Longitud: | 0,00 m |
Anchura: | 0,00 m |
Altura: | 0,00 m |
