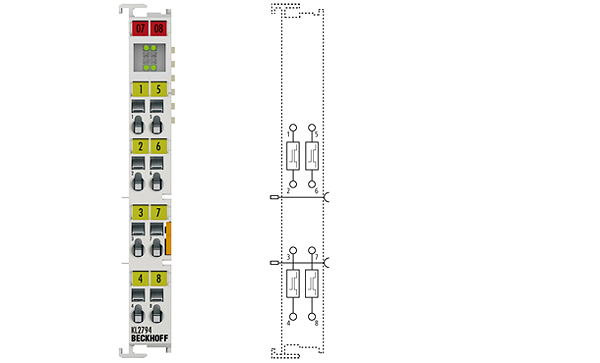

KL2794
KL2794 | 4-channel digital output terminal 30 V AC/DC, 2 A, potential-free, short-circuit-proof
The digital KL2794 Bus Terminal provides four potential-free semiconductor switches that can be used like a relay contact for AC/DC voltages. The electronic switch is realised through high-performance MOSFET transistors with low switch-on resistance. The switch itself is not short-circuit-proof, but due to its high pulse current capability it can cope with current until an external fuse triggers a switch-off.
Connection technology: | 2-wire |
Number of outputs: | 4 x make contacts |
Rated load voltage: | 0…30 V AC/DC (only ohmic load: 0…48 V DC) |
Max. output current: | 2 A per channel |
Breakdown voltage: | 80 V |
Peak current: | 5 A (100 ms), < 50 A (10 ms) |
Isolation voltage (channel/channel): | < 200 V |
Electrical isolation: | 500 V (K-bus/field potential) |
Switching on speed: | typ. 1.8 ms, max. 5 ms |
Switching off speed: | typ. 30 ms, max. 50 ms |
On-resistance: | typ. 0.03 Ω |
Current consumption K-bus: | 80 mA |
Bit width in the process image: | 4 outputs |
Special features: | alternative for relay contacts, potential-free |
Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
Relative humidity: | 95 %, no condensation |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos.: | IP 20/variable |
Pluggable wiring: | for all KSxxxx Bus Terminals |
Approvals: | CE, UL, Ex |
ECCN: | |
País de origen: | |
EAN: | |
Peso: | 0,00 kg |
Longitud: | 0,00 m |
Anchura: | 0,00 m |
Altura: | 0,00 m |
