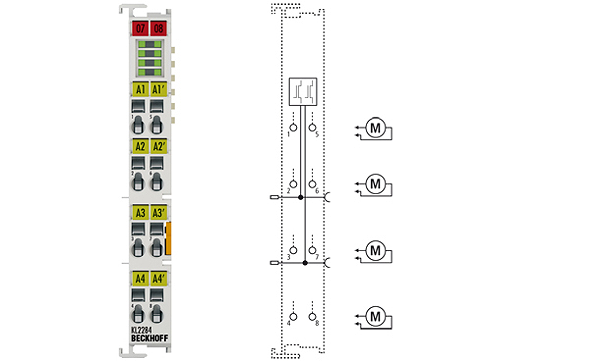

KL2284 | 4-channel digital output terminal 24 V DC, 2 A, reverse switching
The KL2284 output terminal switches loads in selectable polarity. This means that DC motors can be used in both directions of rotation. A polarity is switched with two output bits per channel. An interlock prevents simultaneous switching of both directions. Advanced power semiconductors enable safe and wear-free switching with minimum dimensions. The high starting and short-circuit currents of the KL2284 are comparable with a robust relay. The number of switching cycles is almost unlimited.
Connection technology: | 2-wire |
Number of outputs: | 4 x H-bridge circuit |
Rated load voltage: | 0…24 V DC |
Output current: | 2 A on each channel |
Breakdown voltage: | 80 V |
Peak current: | 5 A (100 ms), < 50 A (10 ms) |
Electrical isolation: | 500 V (K-bus/field potential) |
Switching on speed: | typ. 235 ms, max. 300 ms |
Switching off speed: | typ. 30 ms, max. 50 ms |
On-resistance: | typ. 0.03 Ω |
Current consumpt. K-bus: | 100 mA |
Bit width in the process image: | 8 outputs |
Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
Relative humidity: | 95 %, no condensation |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos.: | IP 20/variable |
Pluggable wiring: | for all KSxxxx Bus Terminals |
Approvals: | CE |
