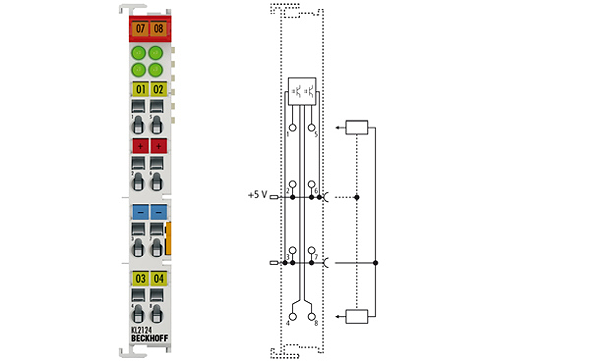

Beckhoff KL2124
KL2124 | 4-channel digital output terminal 5 V DC
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
The KL2124 digital output terminal connects the binary control signals from the automation unit on to the actuators at the process level with electrical isolation. The load current outputs of the KL2124 version are protected against overload and short-circuit. The Bus Terminal contains four channels that indicate their signal state by means of light emitting diodes.
Parámetros técnicos
| Connection technology: | 2-/3-wire |
| Number of outputs: | 4 |
| Rated load voltage: | 5 V DC |
| Load type: | ohmic, inductive, lamp load |
| Max. output current: | ±20 mA (short-circuit-proof) per channel, 8 mA signal current |
| Short circuit current: | – |
| Breaking energy: | – |
| Reverse voltage protection: | yes |
| Electrical isolation: | 500 V (K-bus/field potential) |
| Current consumption power contacts: | typ. 16 mA + load |
| Current consumpt. K-bus: | typ. 14 mA |
| Bit width in the process image: | 4 outputs |
| Configuration: | no address or configuration setting |
| Weight: | approx. 70 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all KSxxxx Bus Terminals |
| Approvals: | CE, UL, Ex |
