KL1232 | 2-channel digital input terminal 24 V DC with edge triggered pulse expansion

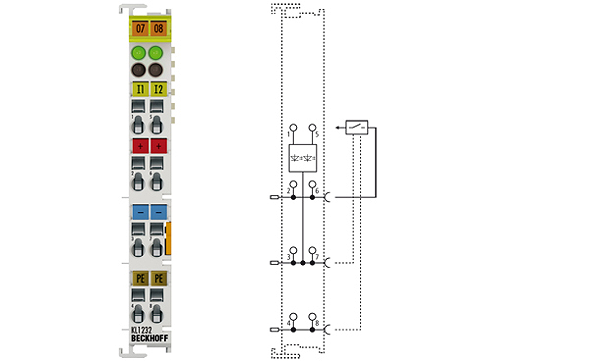

The KL1232 digital input terminal acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The KL1232 has an input circuit that extends plus-switched signals, triggered on the rising edge, to 100 ms. The Bus Terminal contains two channels that indicate their signal state by means of LEDs. The KL1232 is particularly suitable for recording very short signals in control systems with a longer processing time than the signal length.
Connection technology: | 4-wire |
Specification: | pulse expansion |
Number of inputs: | 2 |
Nominal voltage: | 24 V DC (-15 %/+20 %) |
“0“ signal voltage: | -3…+5 V |
“1“ signal voltage: | 15…30 V |
Input filter: | 0.2 ms |
Input current: | typ. 5 mA |
Pulse expansion: | 100 ms |
Current consumpt. K-bus: | typ. 5 mA |
Electrical isolation: | 500 V (K-bus/field potential) |
Bit width in the process image: | 2 inputs |
Configuration: | no address or configuration setting |
Special features: | edge triggered pulse expansion |
Weight: | approx. 55 g |
Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
Relative humidity: | 95 %, no condensation |
Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos.: | IP 20/variable |
Pluggable wiring: | for all KSxxxx Bus Terminals |
Approvals: | CE, UL, Ex |
