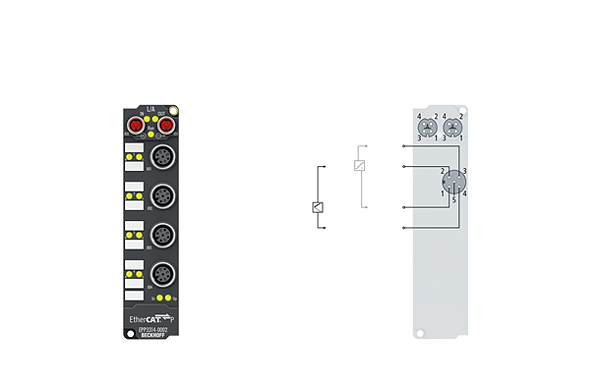

Beckhoff EPP3314-0002
EPP3314-0002 | 4-channel analog input thermocouple
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
The EPP3314 EtherCAT P Box with analog inputs permits four thermocouples to be directly connected. The module’s circuit can operate thermocouple sensors using the 2-wire technique. Linearisation over the full temperature range is realised with the aid of a microprocessor. The temperature range can be selected freely. The error LEDs indicate a broken wire. Compensation for the cold junction is made through a temperature measurement in the connecting plugs. This means that standard extension leads can be connected. The EPP3314 can also be used for mV measurement.
Parámetros técnicos
| Number of inputs: | 4 |
| Connection method: | screw type M12, 2-wire connection for thermocouple |
| Protocol: | EtherCAT |
| Bus interface: | 2 x M8 socket, shielded, screw type, EtherCAT-P-coded |
| Sensor types: | types J, K, L, B, E, N, R, S, T, U (default setting type K), mV measurement |
| Signal type: | thermocouple |
| Measuring range: | depending on sensor type; preset value is type K, -100…+1370 °C |
| Resolution: | 0.1 °C per digit |
| Measuring error: | < ±0.3 % for type K (relative to full scale value; further types see documentation) |
| Conversion time: | 2.5 s up to 20 ms, see documentation, default: approx. 250 ms |
| Nominal voltage: | 24 V DC (-15 %/+20 %) |
| Distributed clocks: | – |
| Input filter: | 5 variations, configurable |
| Sensor supply: | – |
| Current consumption from US: | typ. 100 mA |
| Power supply connection: | not necessary |
| Bit width in the process image: | 4 x 32 bit TC input, 4 x 16 bit TC output |
| Electrical isolation: | 500 V |
| Special features: | open-circuit recognition |
| Weight: | approx. 165 g |
| Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings: | CE, UL |
