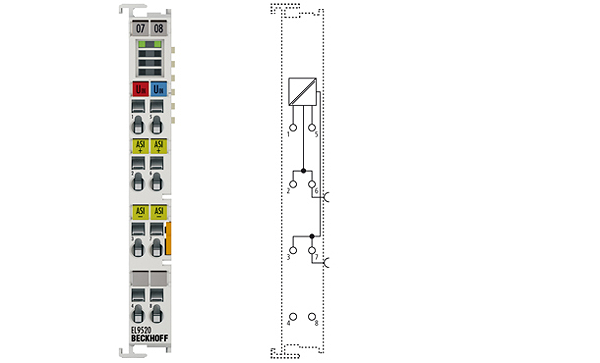

Beckhoff EL9520
EL9520 | AS-Interface potential feed terminal with filter
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
The EL9520 potential feed terminal uncouples the input and output signal through an integrated filter and enables the supply of AS-Interface networks from standard power supply units or another AS-Interface network. The EL9520 can be used directly next to the EL6201 AS-Interface master terminal. Multiple parallel operation of this combination in an EtherCAT Terminal block is possible and saves several AS-Interface power supply units.
Parámetros técnicos
| Technology: | AS-Interface potential feed terminal |
| Short-circuit-proof: | – |
| Input voltage: | up to 35 V |
| Output voltage: | up to 35 V |
| Output current: | 2 A |
| Current load: | max. 2 A |
| Configuration: | no address or configuration setting |
| Current consumption E-bus: | typ. 100 mA |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Insulation voltage input/output: | – |
| Diagnostics in the process image: | – |
| Special features: | no electrical isolation |
| Weight: | approx. 90 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all ESxxxx terminals |
| Approvals: | CE |
| AS-Interface certificate: | yes, ZU-No. 101601 |
