EL9100

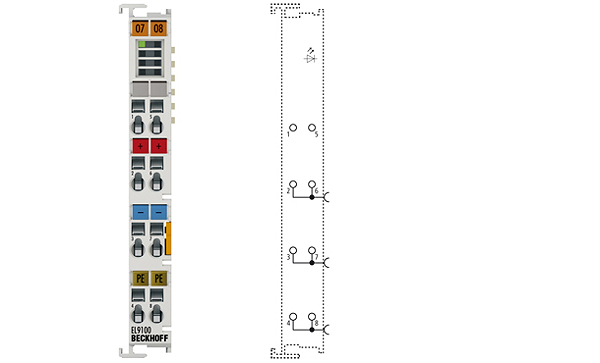

EL9100 | Potential supply terminal, 24 V DC
The EL9100 power feed terminal makes it possible to set up various potential groups with the standard voltage of 24 V DC.
Technology: | potential supply terminal |
Number of outputs: | – |
Current load: | ≤ 10 A |
Power LED: | green |
Defect LED: | – |
Renewed infeed: | yes |
Current consumption E-bus: | – |
Nominal voltage: | 24 V DC |
Integrated fine-wire fuse: | – |
Electrical isolation: | 500 V (E-bus/field potential) |
Diagnostics in the process image: | – |
Reported to E-bus: | – |
PE contact: | yes |
Shield connection: | – |
Connection facility to additional power contact: | 1 |
Bit width in the process image: | 0 |
Electrical connection to DIN rail: | – |
Housing width: | 12 mm |
Side by side mounting on EtherCAT Terminals with power contact: | yes |
Side by side mounting on EtherCAT Terminals without power contact: | yes |
Weight: | approx. 50 g |
Operating/storage temperature: | -25…+60 °C/-40…+85 °C |
Pluggable wiring: | for all ESxxxx terminals |
Approvals/markings: | CE, UL, ATEX |
Ex marking: | II 3 G Ex nA IIC T4 Gc |
