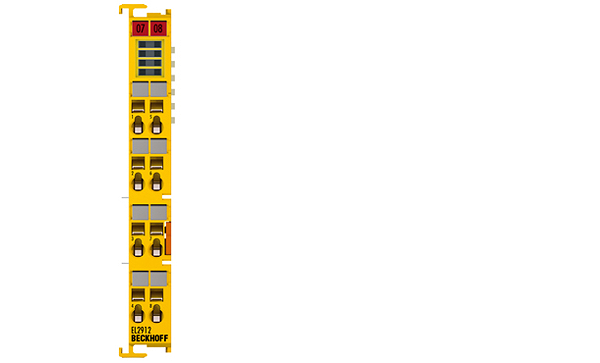

Beckhoff EL2912
EL2912 | 2-channel digital output terminal, TwinSAFE Logic, 24 V DC, 2 A
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
The EL2912 safety EtherCAT Terminal is a digital output terminal. It has two fail-safe outputs with 2 A. The EL2912 integrates a programmable TwinSAFE Logic enabling the implementation of safety applications directly in the terminal.
Parámetros técnicos
| Connection technology: | 1-/2-wire |
| Number of outputs: | 2 |
| Max. output current: | 2 A |
| Protocol: | TwinSAFE/Safety over EtherCAT |
| Fault response time: | ≤ watchdog time (parameterisable) |
| Current consumption power contacts: | load-dependent |
| Current consumption E-bus: | typ. 200 mA |
| Installation position: | horizontal |
| Safety standard: | EN ISO 13849-1:2015 (Cat. 4, PL e) and EN 61508:2010 (SIL 3) |
| Weight: | approx. 55 g |
| Protection class: | IP 20 |
| Approvals/markings: | Overview of TwinSAFE Certifications (PDF) |
| Download EtherCAT slave information (ESI): | ESI config file EL29xx (ZIP) |
