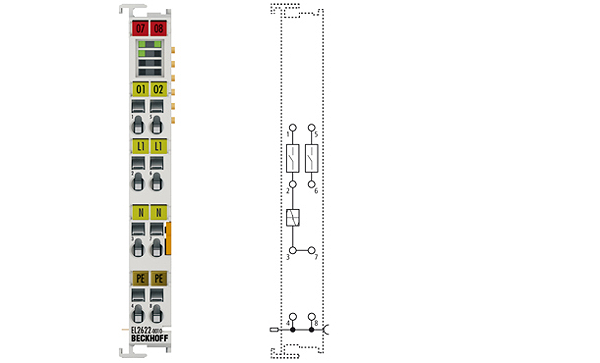

Beckhoff EL2622-0010
EL2622-0010 | 2-channel relay output terminal 230 V AC, 5 A, make contacts, no power contacts, contact-protecting switching of LED lamps
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
The EL2622-0010 output terminal has two relays each of which has a single contact. The relay terminal is designed for soft switching at the zero voltage crossing to protect the contacts and is particularly suitable for capacitive loads such as LED lamps. The power contacts are not looped through. The EtherCAT Terminal indicates its signal state by means of light emitting diodes.
Parámetros técnicos
| Connection technology: | relay output |
| Number of outputs: | 2 x make contacts |
| Nominal voltage: | 230 V AC/30 V DC |
| Load type: | ohmic, inductive, capacitive |
| Distributed clocks: | – |
| Switching current: | 5 A AC/DC per channel |
| Inductive switching current: | 2 A AC/DC per channel |
| Minimum permitted load: | 0.1 mA at 0.1 V DC |
| Current consumption E-bus: | typ. 120 mA |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Current consumption power contacts: | – |
| Bit width in the process image: | 2 outputs + 1 input |
| Operating cycles mech. (min.): | 2 x 107 |
| Operating cycles electr. (min.): | 8 x 104 (5 A/30 V DC or 5 A/250 V AC and ohmic load) |
| Configuration: | no address or configuration setting |
| Special features: | soft switching at zero voltage crossing significantly extends service life with AC voltage supply |
| Weight: | approx. 50 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Pluggable wiring: | for all ESxxxx terminals |
| Approvals/markings: | CE, UL |
