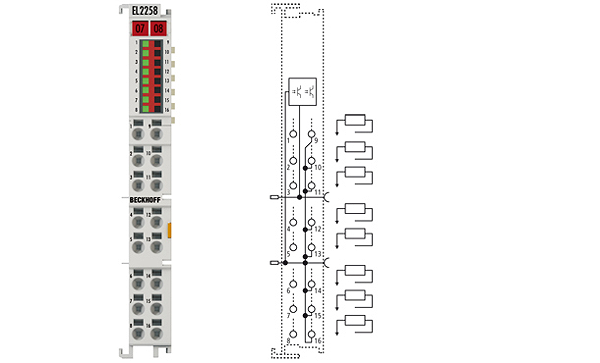

Beckhoff EL2258
EL2258 | 8-channel digital output terminal with multi-timestamping
Bajo pedido. Envíenos un correo electrónico para consultar el precio y la disponibilidad.
"ucnguBrctvdgcxgt0eqo"
Descripción
The 8-channel EL2258 digital output terminal switches the binary output signals of the controller electrically isolated from the process level. As in the EL2252, the outputs of the EL2258 are switched with high precision relative to the transferred timestamp, although there are certain differences in the details: eight instead of two channels, coarser temporal resolution and AutoActivation, which enables consecutive switching tasks in each cycle. With multi-timestamping as many events can be read per channel in each EtherCAT cycle, as were pre-loaded in the internal buffer.
Parámetros técnicos
| Connection technology: | 2-wire |
| Number of outputs: | 8 |
| Nominal voltage: | 24 V DC (-15 %/+20 %) |
| Load type: | ohmic, inductive, lamp load |
| Oversampling/multi-timestamping factor: | n = integer multiple of the cycle time, 1…10 |
| Internal sampling/execution: | < 10…40 µs, corresponds to 100…25 k detectable edges/s, dependent on configuration |
| Distributed clocks: | yes |
| Distributed clock precision: | << 1 µs |
| Output delay through 24 V power section: | typ. < 1 µs |
| Max. output current: | 0.5 A (short-circuit proof) per channel |
| Output stage: | push |
| Short-circuit current: | typ. < 1 A |
| Reverse voltage protection: | yes |
| Breaking energy: | < 150 mJ/channel |
| Switching times: | typ. TON: < 1 µs, typ. TOFF: < 1 µs |
| Current consumption E-bus: | typ. 130 mA |
| Electrical isolation: | 500 V (E-bus/field potential) |
| Current consumption power contacts: | typ. 30 mA + load |
| Bit width in the process image: | 8 bit output (ch. 1 + ch. 2), 9 byte timestamp |
| Special features: | multi-timestamping, auto activation |
| Weight: | approx. 55 g |
| Operating/storage temperature: | 0…+55 °C/-25…+85 °C |
| Relative humidity: | 95 %, no condensation |
| Vibration/shock resistance: | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission: | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos.: | IP 20/variable |
| Approvals/markings: | CE, UL |
