BK3520

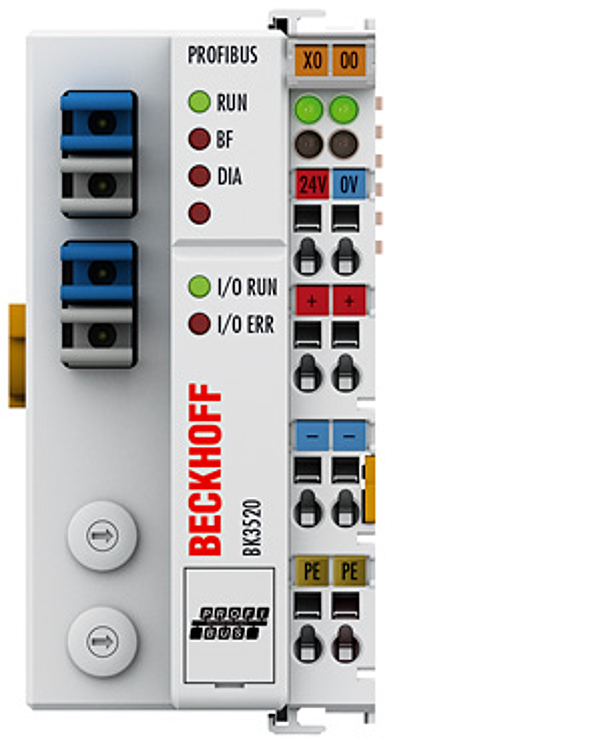

BK3520 | PROFIBUS “Economy plus” Bus Coupler, fibre optic
The BK3520 “Economy plus” Bus Coupler links a fibre optic PROFIBUS system to the modular, extendable electronic Bus Terminal system. With the K-bus extension technology up to 255 spatially distributed Bus Terminals can be connected to one Bus Coupler.
Number of I/O stations: | 100 with repeater |
Number of I/O points: | approx. 6,000, depending on the master |
Data transfer medium: | APF (plastic) fibre (1,000 µm) |
Max. cable length: | 40 m between two stations |
Data transfer rates: | up to 12 Mbaud |
ECCN: | |
País de origen: | |
EAN: | |
Peso: | 0,00 kg |
Longitud: | 0,00 m |
Anchura: | 0,00 m |
Altura: | 0,00 m |
