BC9100

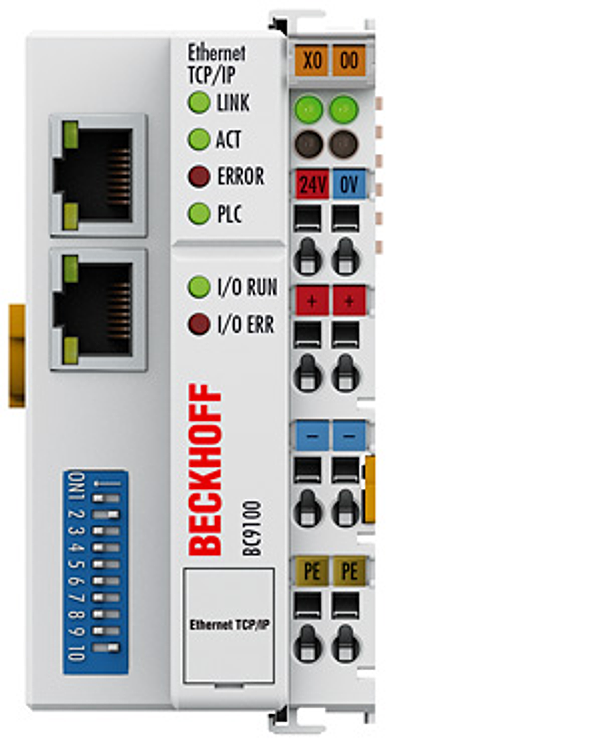

BC9100 | Ethernet TCP/IP Bus Terminal Controller
The Bus Terminal Controller BC9100 is a Bus Coupler with integrated PLC functionality and has a fieldbus interface for Ethernet. The BC9100 is an intelligent slave and can be used as a non-central intelligence in the Ethernet system. One unit consists of the Bus Terminal Controller, any number of terminals between 1 and 64, and a bus end terminal.
Programming: | via TwinCAT and programming interface or Ethernet |
Program memory: | 64/96 kbytes |
Data memory: | 64/128 kbytes |
Remanent data: | 4080 bytes |
Runtime system: | 1 PLC task |
PLC cycle time: | approx. 1.5 ms for 1,000 instructions (without I/O cycle, K-bus) |
Programming languages: | IEC 61131-3 (IL, LD, FBD, SFC, ST) |
Online change: | – |
ECCN: | |
País de origen: | |
EAN: | |
Peso: | 0,00 kg |
Longitud: | 0,00 m |
Anchura: | 0,00 m |
Altura: | 0,00 m |
