ABB 2CPX032408R9999

KS408SB

KS408SB Cabinet Complete

Descripción

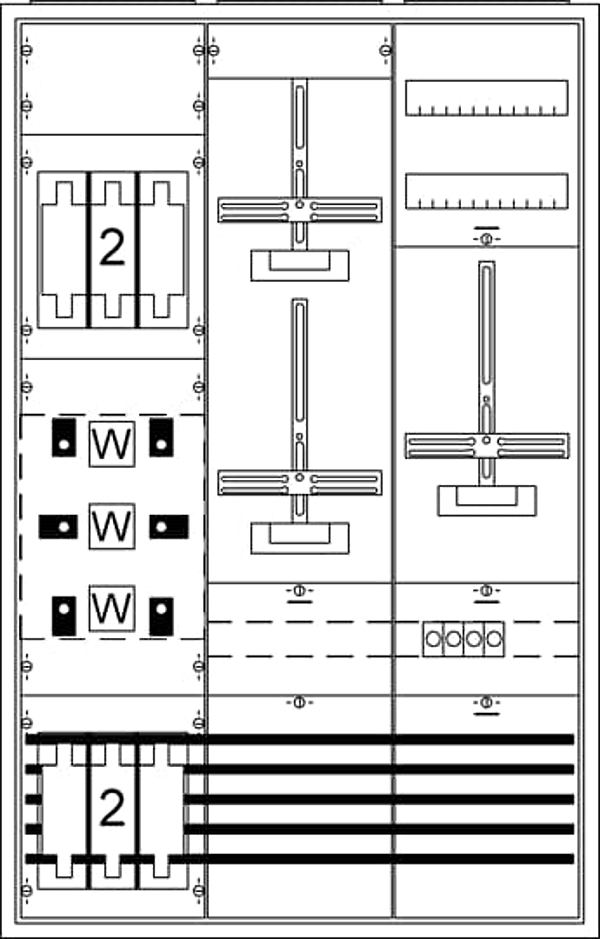

Measurement and metering transformer cabinet, series A, fully assembled cabinet, with Metering cross, for the internal use, class of protection II (double insulated), degree of protection IP43, applicable standards: EN 61439-1, rated current 250 A, powder-coated, in RAL 9016, double door, dimensions in mm (H x W x D): 1250 x 800 x 215, Metering module pre-wired, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, Number of reserve spaces 1, Number of SG spaces 1, (300 mm), Number of transformer meter spaces 1, net side compartment, meter space: with busbar, Metering wiring, voltage path Fuse base element D01/3-pole and D01/1-pole, Secondary wiring current Wiring set H07V-U, Secondary wiring voltage Wiring set H07V-U, busbar system Cu busbars 2 x 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, parting point after the current transformer Bottompart 1 x 3 x NH2/400 A with connection screws, primary wiring L1-L3, N 120 qmm, PE 95 qmm, Connection N+PE (M12), Ratchet unit 8 GU, Overall height 4, panel width 3, Space units 288, covers out of Plastic, Quick sealable connection, RAL 7035
