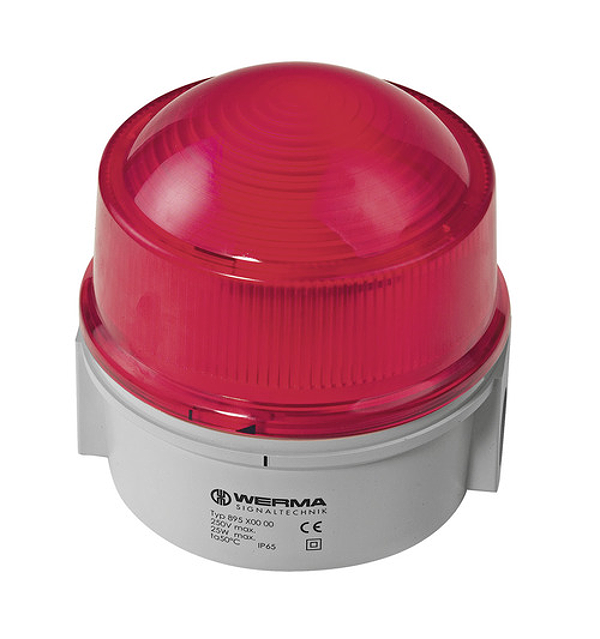

Werma 89710055
Double Flash Beacon BWM 24VDC RD
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Large signal beacons for powerful signal effectiveness. High light intensity thanks to optimised lens
Technical parameters
| Height: | 148 mm |
| Diameter: | 149 mm |
| Materials: | PC PC/ABS |
| Dome colour: | Red |
| Housing colour: | Grey |
| Protection category: | IP65 |
| Connection: | Screw terminals |
| cross-sectional area maximum: | 1,50mm² / 16AWG |
| Cable entry: | Screwed cable gland |
| Cable entry minimum: | d = 5 mm d = 6 mm |
| Cable entry maximum: | d = 12 mm d = 7 mm |
| Tension relief: | Present (conforms to VDI) |
| Type of fixing: | Base mounting Wall mounting |
| Working temperature minimum: | -30°C |
| Working temperature maximum: | +50°C |
| Weight with packaging: | 614 g |
| Product weight: | 524 g |
| Operating voltage: | 24V |
| Operating voltage type: | DC |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 24 VDC |
| Rated operational current: | 700 mA |
| Rated inrush current: | 2.000 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Light source: | Xenon |
| Light colour: | Red |
| Optical signal image: | Double flash |
| Flash frequency: | 1 Hz |
| Flash output: | 15 J |
| Service life optical: | 4 million flashes minimum |
