89520000

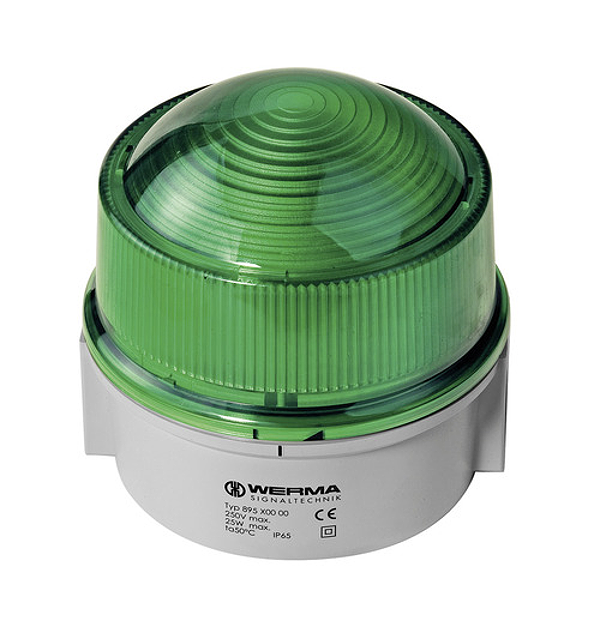

Permanent Beacon BWM 12-230VAC/DC GN
Large signal beacons for powerful signal effectiveness
Height: | 148 mm |
Diameter: | 149 mm |
Materials: | PC PC/ABS |
Dome colour: | Green |
Housing colour: | Grey |
Protection category: | IP65 |
Connection: | Insulation-displacement contac |
cross-sectional area maximum: | 1,50mm² / 16AWG |
Cable entry: | Screwed cable gland |
Cable entry minimum: | d = 6 mm |
Cable entry maximum: | d = 12 mm |
Tension relief: | Present (conforms to VDI) |
Type of fixing: | Base mounting Wall mounting |
Working temperature minimum: | -30°C |
Working temperature maximum: | +50°C |
Weight with packaging: | 492 g |
Product weight: | 390 g |
Operating voltage: | 12-230V |
Operating voltage type: | AC/DC |
Protection class: | Protection class 2 |
Pollution degree: | 3 |
Overvoltage category: | II |
Isolation voltage: | Ui = 250V; Uimp = 2.500V |
Light colour: | Green |
Service life optical: | depends on bulb |
