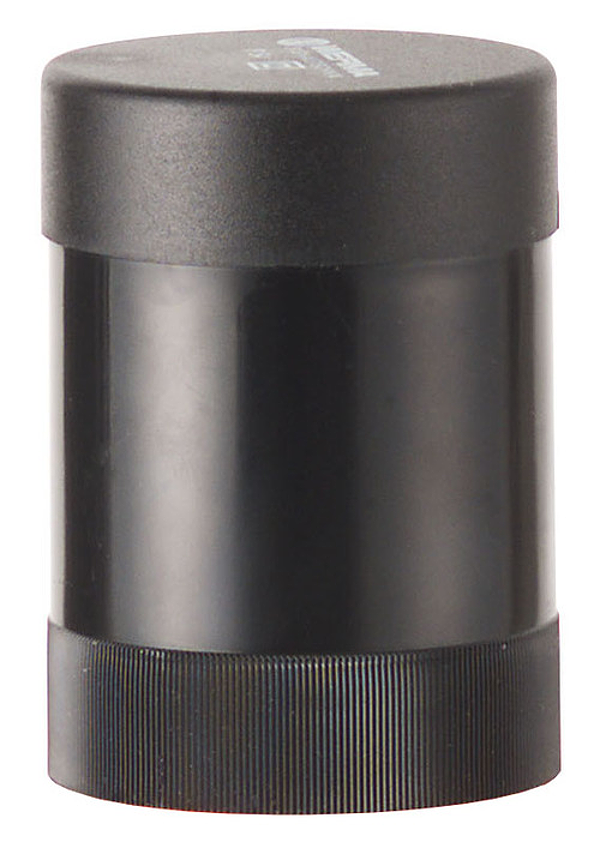

Werma 84900068
Buzzer element contin/pulse 230VAC BK
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
NAME?
Technical parameters
| Height: | 72 mm |
| Diameter: | 52 mm |
| Materials: | PC |
| Housing colour: | Black |
| Protection category: | IP54 |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +50°C |
| UL Type Rating: | Type 12 |
| Weight with packaging: | 64.1 g |
| Product weight: | 53.5 g |
| Operating voltage: | 230V |
| Operating voltage type: | AC |
| Operating voltage frequency: | 50Hz |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 230 VAC |
| Rated operational current: | 35 mA |
| Rated inrush current: | 450 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Overvoltage category: | II |
| Isolation voltage: | Ui = 250V; Uimp = 2.500V |
| Volume/dB(max) at 1m distance: | 85,0 dB (A) |
| Acoustic signal image: | Continuous tone Pulse tone |
| Audio frequency: | 2500 Hz |
| Acoustic service life: | 5,000 h minimum |
