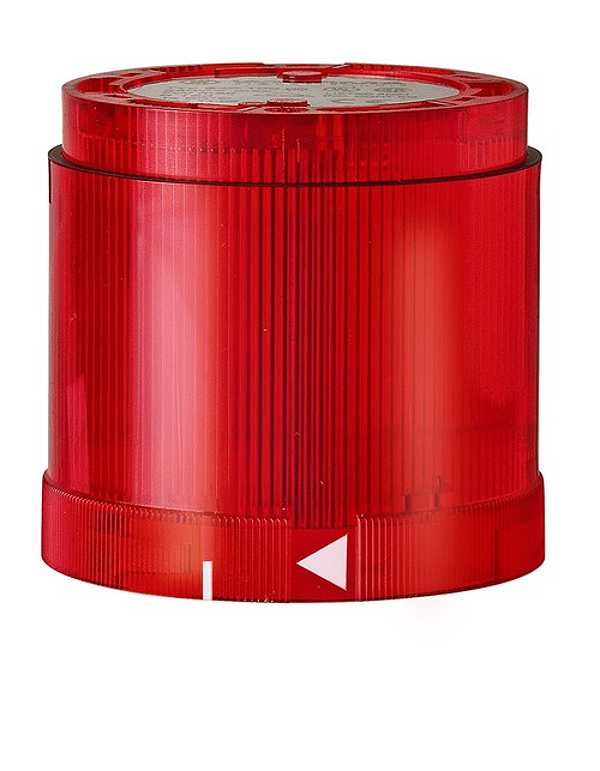

Werma 84311067
LED Blinking light element 115VAC RD
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Durch das blinkende Signal kann eine höhere Aufmerksamkeit erregt werden
Technical parameters
| Height: | 66 mm |
| Diameter: | 70 mm |
| Materials: | PC |
| Dome colour: | Red |
| Protection category: | IP54 |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +50°C |
| UL Type Rating: | Type 12 |
| Weight with packaging: | 84 g |
| Product weight: | 70 g |
| Operating voltage: | 115V |
| Operating voltage type: | AC |
| Operating voltage frequency: | 60Hz |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 115 VAC |
| Rated operational current: | 25 mA |
| Rated inrush current: | 500 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Overvoltage category: | II |
| Isolation voltage: | Ui = 250V; Uimp = 2.500V |
| Light source: | LED |
| Light colour: | Red |
| Optical signal image: | Blink |
| Blink frequency (Hz): | 1 Hz |
| Service life optical: | 100,000 h maximum |
