Product
Werma
83935268
Request a Quote
Image copyright: Werma
Werma 83935268

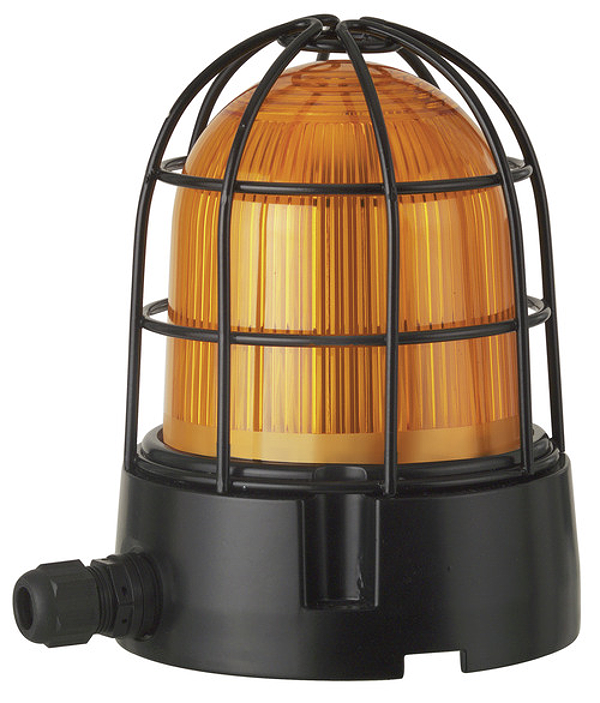

Double Flash Beacon BM 230VAC YE
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Robust aluminium housing including wire guard, salt water resistant. High Protection rating IP 66/67. High flash power from two consecutive flashes
Technical parameters
| Height: | 189 mm |
| Diameter: | 153 mm |
| Materials: | Aluminium PC |
| Dome colour: | Yellow |
| Housing colour: | Black |
| Protection category: | IP66 IP67 |
| Connection: | Screw terminals |
| cross-sectional area maximum: | 2,50mm² / 14AWG |
| Cable entry: | Screwed cable gland |
| Cable entry minimum: | d = 6 mm |
| Cable entry maximum: | d = 13 mm |
| Tension relief: | Present (conforms to VDI) |
| Type of fixing: | Base mounting |
| Working temperature minimum: | -30°C |
| Working temperature maximum: | +50°C |
| Weight with packaging: | 1416 g |
| Product weight: | 1266 g |
| Operating voltage: | 230V |
| Operating voltage type: | AC |
| Operating voltage frequency: | 50Hz |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 230 VAC |
| Rated operational current: | 200 mA |
| Rated inrush current: | 2.000 mA |
| Protection class: | Protection class 1 |
| Pollution degree: | 3 |
| Overvoltage category: | II |
| Isolation voltage: | Ui = 250V; Uimp = 2.500V |
| Light source: | Xenon |
| Light colour: | Yellow |
| Optical signal image: | Double flash |
| Flash frequency: | 1 Hz |
| Flash output: | 15 J |
| Service life optical: | 4 million flashes minimum |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
