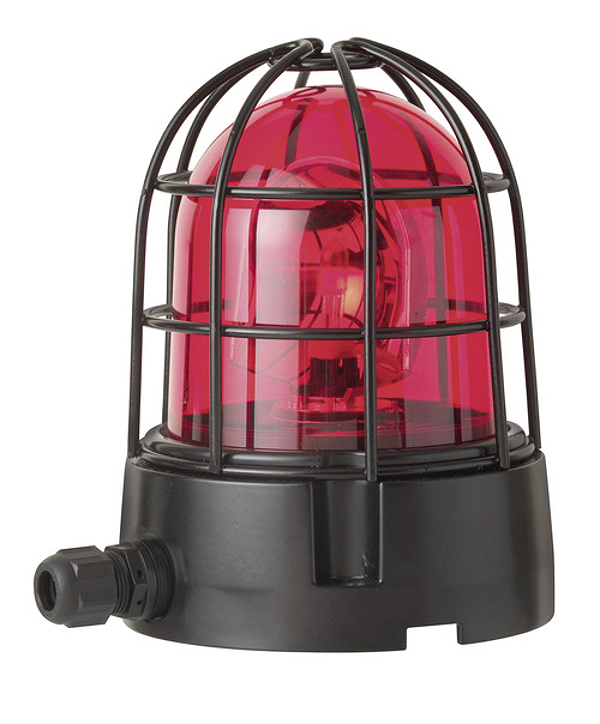

Werma 83916078
Rotating Mirror Beacon BM 115-230VAC/DC
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Robust aluminium housing including wire guard, salt water resistant. Extreme durability thanks to low wear belt drive. High protection rating IP 66/67
Technical parameters
| Height: | 189 mm |
| Diameter: | 153 mm |
| Materials: | Aluminium PC |
| Dome colour: | Red |
| Housing colour: | Black |
| Protection category: | IP66 IP67 |
| Connection: | Screw terminals |
| cross-sectional area maximum: | 2,50mm² / 14AWG |
| Cable entry: | Screwed cable gland |
| Cable entry minimum: | d = 6 mm |
| Cable entry maximum: | d = 13 mm |
| Tension relief: | Present (conforms to VDI) |
| Type of fixing: | Base mounting |
| Working temperature minimum: | -30°C |
| Working temperature maximum: | +50°C |
| Weight with packaging: | 1468 g |
| Product weight: | 1318 g |
| Operating voltage: | 115-230V |
| Operating voltage type: | AC/DC |
| Operating voltage frequency: | 50Hz at 230V 60Hz at 115V |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 230 VAC |
| Rated operational current: | 400 mA |
| Rated inrush current: | 2.000 mA |
| Protection class: | Protection class 1 |
| Pollution degree: | 3 |
| Overvoltage category: | II |
| Isolation voltage: | Ui = 250V; Uimp = 2.500V |
| Light source: | halogen bulb |
| Light colour: | Red |
| Optical signal image: | Revolving |
| Service life optical: | 5,000 h minimum |
| Rotation frequency (rpm): | 180 U/min |
