Product
Werma
63445055
Request a Quote
Image copyright: Werma

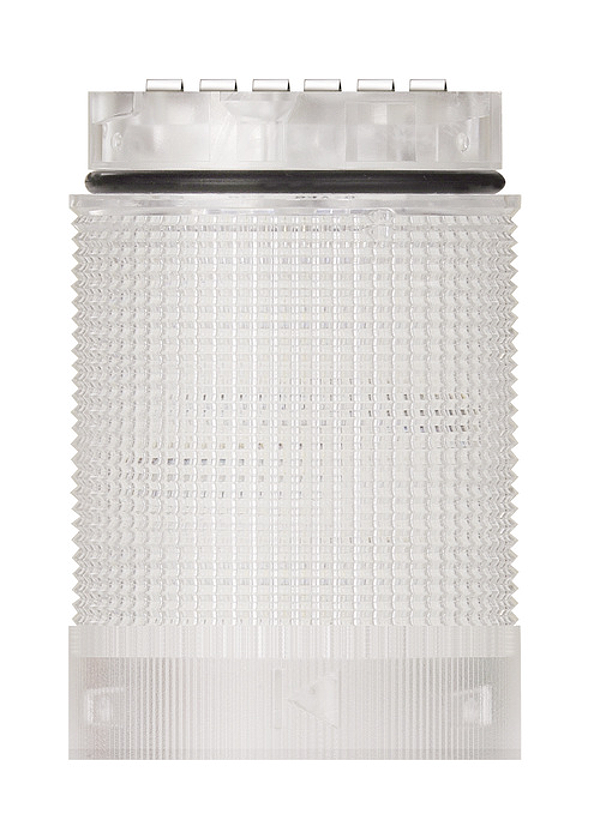

Werma 63445055
LED Perm. light element 24VDC MC
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
No more blind spots with the Omniview lens. DesignLOOK and ClassicLOOK provide the appropriate signal tower for your, application. Multicolour light element offers 7 colour options
Technical parameters
| Height: | 59 mm |
| Diameter: | 40 mm |
| Materials: | PC |
| Dome colour: | Clear |
| Protection category: | IP66 IP69K |
| Working temperature minimum: | -30°C |
| Working temperature maximum: | +60°C |
| UL Type Rating: | Type 12 |
| Weight with packaging: | 39 g |
| Product weight: | 29 g |
| Operating voltage: | 24V |
| Operating voltage type: | DC |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 24 VDC |
| Rated operational current: | 60 mA |
| Rated inrush current: | 500 mA |
| Protection class: | Protection class 3 |
| Pollution degree: | 3 |
| Request to external PSU: | SELV/PELV |
| Light source: | LED |
| Light colour: | MC 7 colours |
| Optical signal image: | Permanent |
| Blink frequency (Hz): | 1 Hz |
| Service life optical: | 50,000 h maximum |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
