63431075

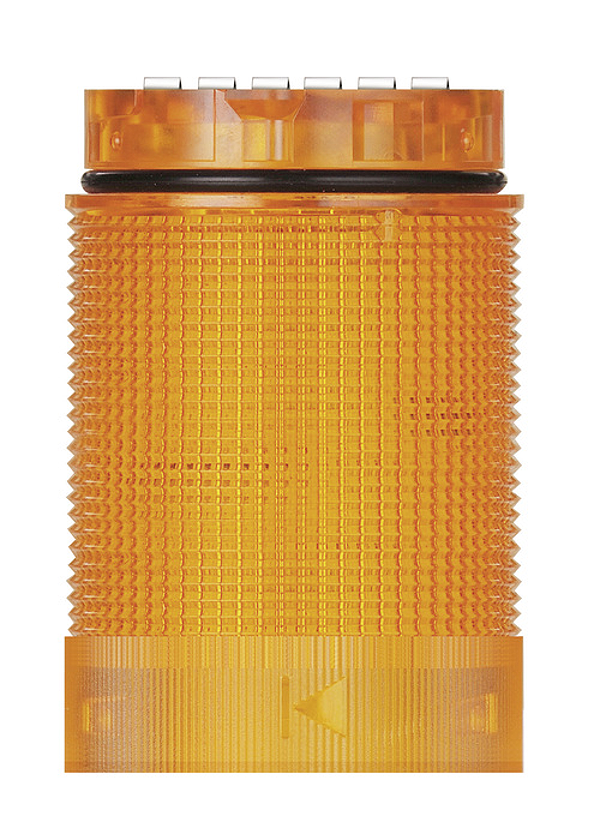

TwinLIGHT Classic 24VAC/DC YE
No more blind spots with the Omniview lens. DesignLOOK and ClassicLOOK provide the appropriate signal tower for your, application. Twin-Elements combine two light effects in one element. TwinLIGHT combines a permanent and blinking light in one element
Height: | 59 mm |
Diameter: | 40 mm |
Materials: | PC |
Dome colour: | Yellow |
Protection category: | IP66 IP69K |
Working temperature minimum: | -30°C |
Working temperature maximum: | +60°C |
UL Type Rating: | Type 12 |
Weight with packaging: | 38 g |
Product weight: | 28 g |
Operating voltage: | 24V |
Operating voltage type: | AC/DC |
Operating voltage frequency: | 50Hz |
Operating voltage tolerance: | +/- 10% |
Rated operational voltage: | 24 VDC |
Rated operational current: | 30 mA |
Rated inrush current: | 500 mA |
Protection class: | Protection class 3 |
Pollution degree: | 3 |
Request to external PSU: | SELV/PELV |
Light source: | LED |
Light colour: | Yellow |
Optical signal image: | TwinLight |
Blink frequency (Hz): | 1 Hz |
Service life optical: | 50,000 h maximum |
