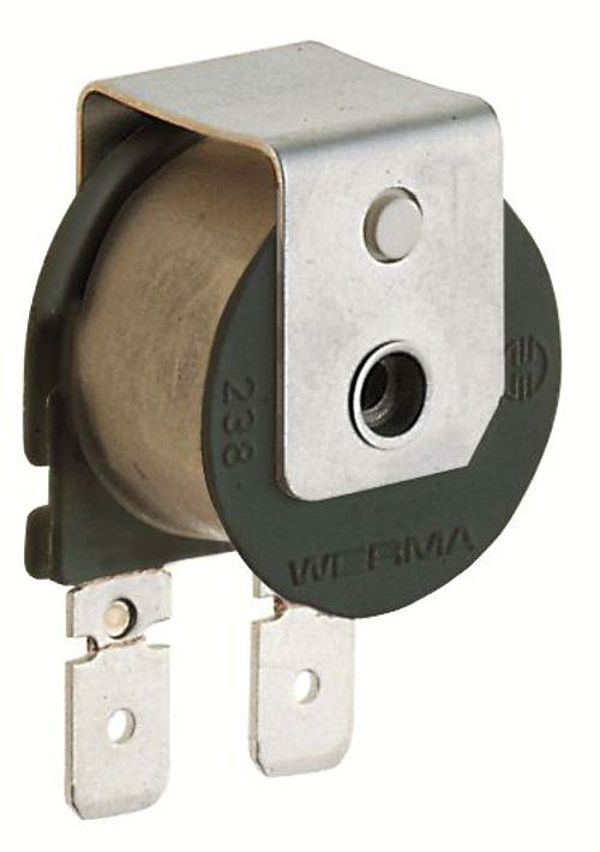

Werma 33827328
Buzzer EM Contin. tone 230VAC
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
AC buzzer for use in electrical appliances
Technical parameters
| Length: | 35 mm |
| Width: | 23 mm |
| Height: | 19 mm |
| Diameter: | 23 mm |
| Materials: | PA-GF |
| Housing colour: | Black |
| Protection category: | IP00 |
| Connection: | Flat plug |
| Type of fixing: | Built-in mounting |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +60°C |
| Weight with packaging: | 23 g |
| Product weight: | 23 g |
| Operating voltage: | 230V |
| Operating voltage type: | AC |
| Operating voltage frequency: | 50Hz |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 230 VAC |
| Rated inrush current: | <500mA |
| Pollution degree: | 2 |
| Volume/dB(max) at 1m distance: | 75,0 dB (A) |
| Acoustic signal image: | Continuous tone |
| Audio frequency: | 100 Hz |
| Acoustic service life: | 300 h minimum |
