Product
Werma
28147068
Request a Quote
Image copyright: Werma
Werma 28147068

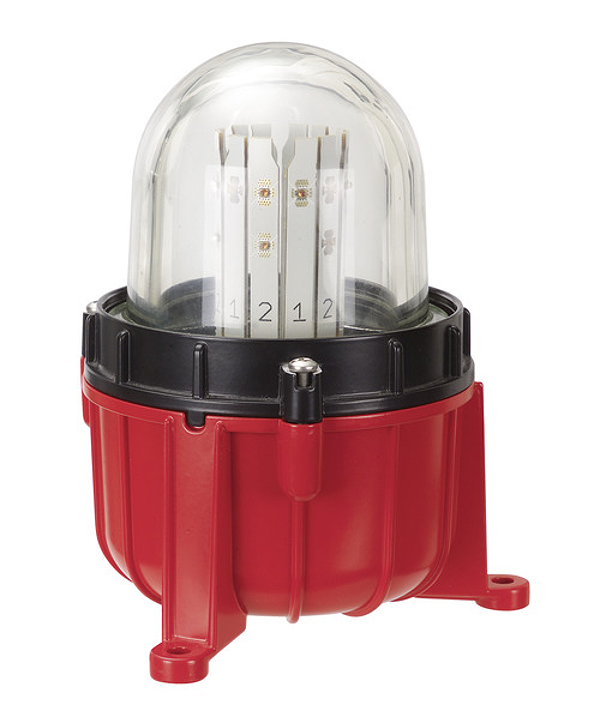

LED Obstruction light BM 230VAC RD
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
LED Obstruction Light with robust glass/metal housing. Suitable for use in tough operating conditions, salt water resistant. LED obstruction light certified in accordance with German BMVBS, regulations. For international use as „Low-intensity Obstacle Light, Type B“ in, accordance with ICAO Annex 14. Also available as 230 V version with monitoring function
Technical parameters
| Height: | 205 mm |
| Diameter: | 165 mm |
| Materials: | Aluminium Glass |
| Dome colour: | Clear |
| Housing colour: | Black Red |
| Protection category: | IP66 IP68 |
| Connection: | Screw terminals |
| cross-sectional area maximum: | 1,50mm² / 16AWG |
| Cable entry: | Screwed cable gland |
| Cable entry minimum: | d = 9 mm |
| Tension relief: | Present (conforms to VDI) |
| Type of fixing: | Base mounting |
| Working temperature minimum: | -30°C |
| Working temperature maximum: | +50°C |
| Weight with packaging: | 2126 g |
| Product weight: | 1893 g |
| Operating voltage: | 230V |
| Operating voltage type: | AC |
| Operating voltage frequency: | 50Hz |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 230 VAC |
| Rated operational current: | 200 mA |
| Rated inrush current: | 2.000 mA |
| Protection class: | Protection class 1 |
| Pollution degree: | 3 |
| Overvoltage category: | II |
| Isolation voltage: | Ui = 250V; Uimp = 2.500V |
| Light source: | LED |
| Light colour: | Red |
| Optical signal image: | Permanent |
| Service life optical: | 50,000 h maximum |
