Product
Werma
26170002
Request a Quote
Image copyright: Werma

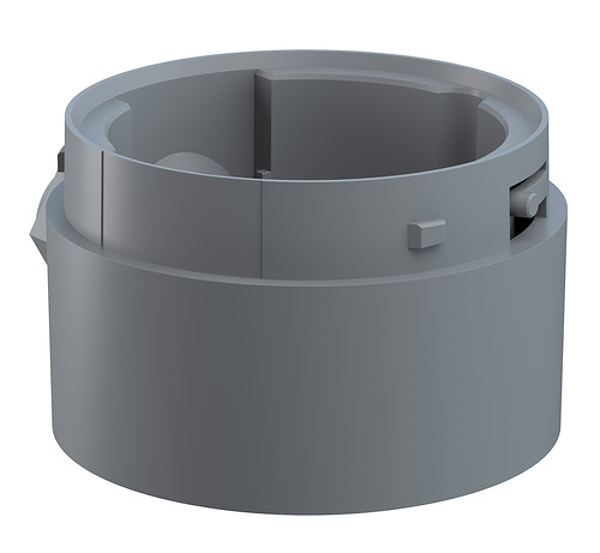

Werma 26170002
Midi Adaptor Cable Gland BM GY
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
EvoSIGNAL is the new modular, simple and clear standard solution for the, signaling sector.
Technical parameters
| Height: | 53 mm |
| Diameter: | 85 mm |
| Materials: | PC/ABS |
| Housing colour: | Grey |
| Protection category: | IP66 |
| Cable entry: | Screwed cable gland |
| Cable entry minimum: | d = 8 mm |
| Cable entry maximum: | d = 12 mm |
| Tension relief: | Present (conforms to VDI) |
| Type of fixing: | Base mounting |
| Working temperature minimum: | -30°C |
| Working temperature maximum: | +60°C |
| Weight with packaging: | 100 g |
| Product weight: | 100 g |
| Pollution degree: | 3 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
