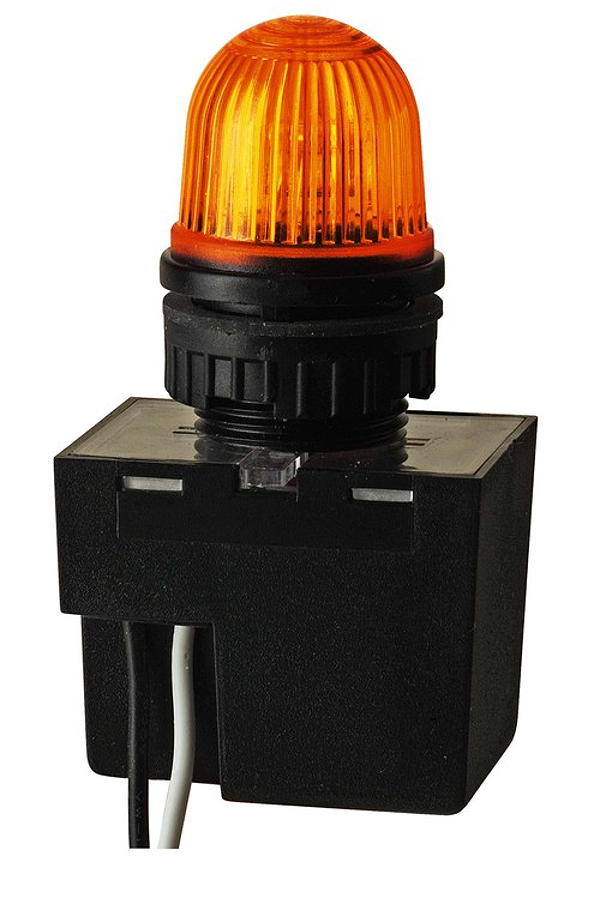

Werma 23230068
Flashing Beacon EM 230VAC YE
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Small flashing beacon with 22 mm installation diameter for the control, panel/switchgear programme. Extremely bright Xenon flash. Wide voltage range
Technical parameters
| Height: | 80 mm |
| Diameter: | 29 mm |
| Materials: | PC PC/ABS |
| Dome colour: | Yellow |
| Housing colour: | Black |
| Protection category: | IP65 |
| Connection: | Cable |
| Cable length: | 600 mm |
| Type of fixing: | Built-in mounting |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +50°C |
| Weight with packaging: | 64 g |
| Product weight: | 54 g |
| Operating voltage: | 230V |
| Operating voltage type: | AC |
| Operating voltage frequency: | 50Hz |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 230 VAC |
| Rated operational current: | 20 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 In the connection area: 2 |
| Overvoltage category: | II |
| Isolation voltage: | Ui = 250V; Uimp = 2.500V |
| Light source: | Xenon |
| Light colour: | Yellow |
| Optical signal image: | Flash |
| Flash frequency: | 1.5 Hz |
| Flash output: | 1 J |
| Service life optical: | 4 million flashes minimum |
