Product
Werma
22110075
Request a Quote
Image copyright: Werma

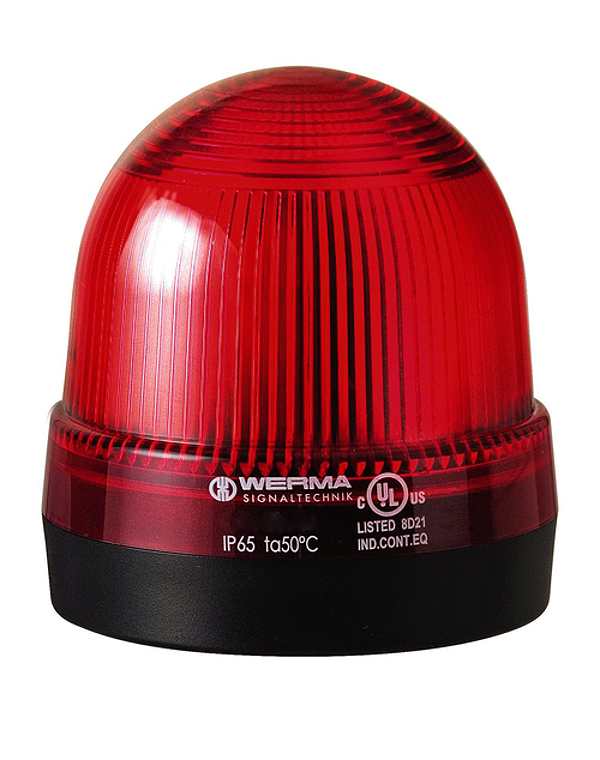

Werma 22110075
LED Perm. Beacon BM 24VAC/DC RD
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
LED beacon with life duration of up to 100,000 hrs. Safe CAGE CLAMP® technology. Connection without the need to disassemble the product
Technical parameters
| Height: | 79 mm |
| Diameter: | 75 mm |
| Materials: | PA-GF PC PC/ABS |
| Dome colour: | Red |
| Housing colour: | Black |
| Protection category: | IP65 |
| Connection: | Spring-type terminal |
| cross-sectional area maximum: | 2,50mm² / 14AWG |
| Cable entry: | Through hole |
| Cable entry maximum: | d = 10 mm |
| Tension relief: | Present (conforms to VDI) |
| Type of fixing: | Base mounting |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +50°C |
| UL Type Rating: | Type 12 |
| Weight with packaging: | 133 g |
| Product weight: | 133 g |
| Operating voltage: | 24V |
| Operating voltage type: | AC/DC |
| Operating voltage frequency: | 50Hz |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 24 VDC |
| Rated operational current: | 45 mA |
| Rated inrush current: | 500 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Light source: | LED |
| Light colour: | Red |
| Optical signal image: | Permanent |
| Service life optical: | 100,000 h maximum |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
