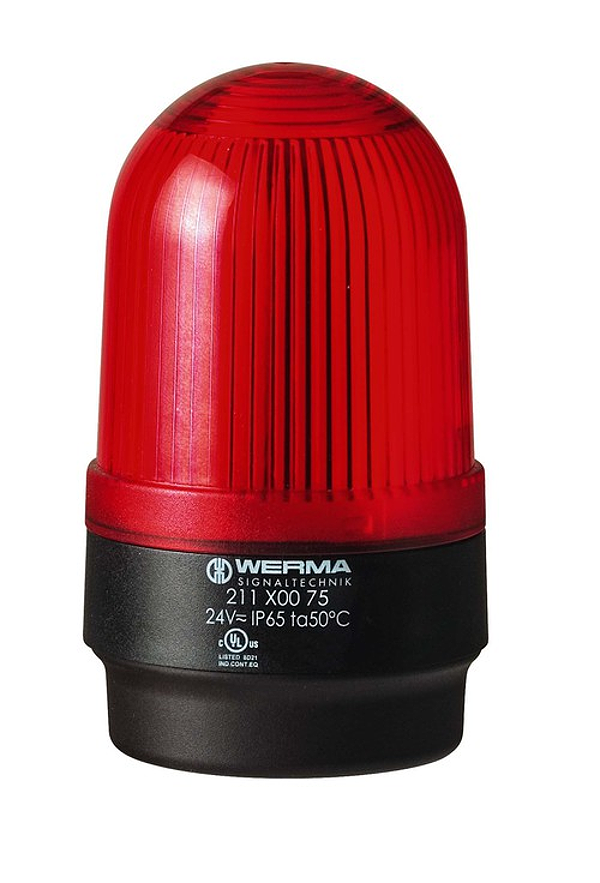

Werma 21110068
LED Perm. Beacon BM 230VAC RD
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
LED flashing beacon with life duration of up to 100,000 hrs. Safe CAGE CLAMP® technology. Connection without the need to disassemble the product
Technical parameters
| Height: | 97 mm |
| Diameter: | 58 mm |
| Materials: | PA-GF PC |
| Dome colour: | Red |
| Housing colour: | Black |
| Protection category: | IP65 |
| Connection: | Spring-type terminal |
| cross-sectional area maximum: | 2,50mm² / 14AWG |
| Cable entry: | Through hole |
| Cable entry maximum: | d = 10 mm |
| Type of fixing: | Base mounting |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +50°C |
| UL Type Rating: | Type 12 |
| Weight with packaging: | 92 g |
| Product weight: | 70 g |
| Operating voltage: | 230V |
| Operating voltage type: | AC |
| Operating voltage frequency: | 50Hz |
| Operating voltage tolerance: | +/- 10% |
| Rated operational voltage: | 230 VAC |
| Rated operational current: | 25 mA |
| Rated inrush current: | 500 mA |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Overvoltage category: | II |
| Isolation voltage: | Ui = 250V; Uimp = 2.500V |
| Light source: | LED |
| Light colour: | Red |
| Optical signal image: | Permanent |
| Service life optical: | 100,000 h maximum |
