Product
Werma
20050000
Request a Quote
Image copyright: Werma

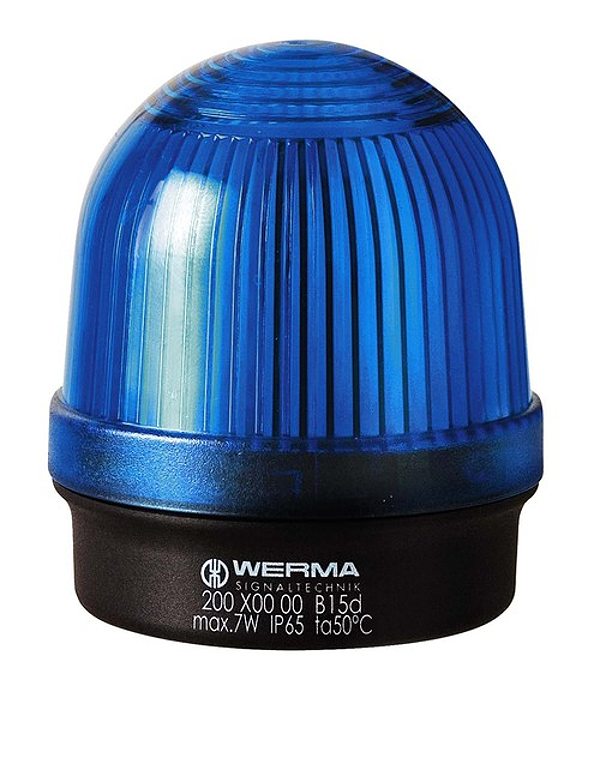

Werma 20050000
Permanent Beacon BM 12-230VAC/DC BU
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Safe CAGE CLAMP® technology. B15d socket integrated in the base. Connection without the need to disassemble the product
Technical parameters
| Height: | 66 mm |
| Diameter: | 57 mm |
| Materials: | PA-GF PC |
| Dome colour: | Blue |
| Housing colour: | Black |
| Protection category: | IP65 |
| Connection: | Spring-type terminal |
| cross-sectional area maximum: | 2,50mm² / 14AWG |
| Cable entry: | Through hole |
| Cable entry maximum: | d = 10 mm |
| Type of fixing: | Base mounting |
| Working temperature minimum: | -20°C |
| Working temperature maximum: | +50°C |
| UL Type Rating: | Type 12 |
| Weight with packaging: | 69 g |
| Product weight: | 47 g |
| Operating voltage: | 12-230V |
| Operating voltage type: | AC/DC |
| Protection class: | Protection class 2 |
| Pollution degree: | 3 |
| Overvoltage category: | II |
| Isolation voltage: | Ui = 250V; Uimp = 2.500V |
| Light colour: | Blue |
| Service life optical: | depends on bulb |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
