Product
Weidmueller
8869500000
SRC-I 2CO P
Request a Quote

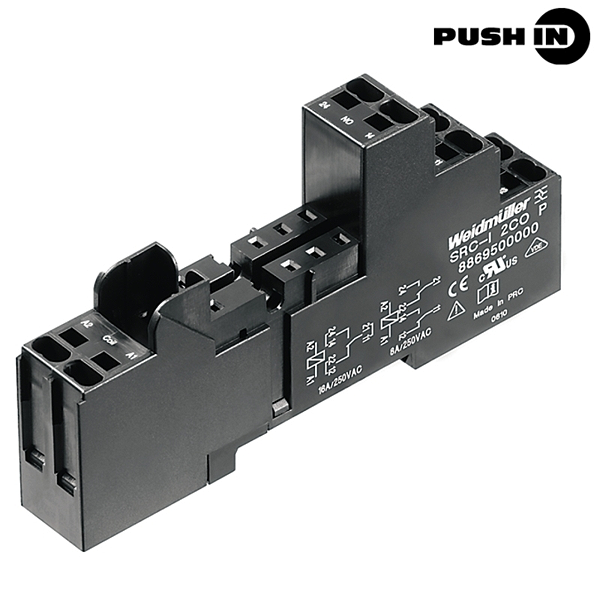

Image copyright: Weidmueller
Weidmueller 8869500000
SRC-I 2CO P
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | SRC-I 2CO P |
| Order No.: | 8869500000 |
| GTIN (EAN): | 4032248614455 |
| Qty.: | 10 pc(s). |
| Width: | 15.8 mm |
| Width (inches): | 0.622 inch |
| Height: | 98 mm |
| Height (inches): | 3.858 inch |
| Depth: | 48.3 mm |
| Depth (inches): | 1.902 inch |
| Net weight: | 39.8 g |
| Humidity: | 40 °C / 93 % rel. humidity, no condensation |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 70 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...70 °C |
| Storage temperature: | -40 °C...70 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Certificate No. (cURus): | E223759 |
| Rated switching voltage: | 250 V AC |
| Max. switching voltage, AC: | 400 V |
| Contact type: | 2 CO contact |
| Rail: | TS 35 |
| Colour: | black |
| UL 94 flammability rating: | V-0 |
| Rated voltage: | 250 V |
| Surge voltage category: | III |
| Pollution severity: | 2 |
| Insulating material group: | IIIa |
| Protection degree: | IP20 |
| Type of isolation at input and output: | reinforced insulation |
| Creepage and clearance distance input – output: | ≥ 10 mm |
| Type of isolation at neighbouring contacts: | Functional insulation |
| Standards: | IEC 61810-1, UL508 |
| Certificate No. (CSA): | 249409-2295474 |
| Certificate No. (cURus): | E223759 |
| Wire connection method: | PUSH IN |
| Stripping length, rated connection: | 12 mm |
| Clamping range, rated connection: | 1.5 mm² |
| Clamping range, min.: | 0.75 mm² |
| Clamping range, max.: | 1.5 mm² |
| Wire cross-section, solid, min.: | 0.75 mm² |
| Wire cross-section, solid, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.75 mm² |
| Wire connection cross section, finely stranded, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.75 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 0.75 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min.: | 0.75 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max.: | 1 mm² |
| Blade size: | 0.6 x 3.5 mm |
| Pitch in mm (P): | 5 mm |
| Product information: | 1) For full continuous current (16 A), relay connections 11–21, 12–22 and 14–24 must be bridged. |
| ETIM 6.0: | EC001456 |
| ETIM 7.0: | EC001456 |
| eClass 9.0: | 27-37-16-03 |
| eClass 9.1: | 27-37-16-03 |
| eClass 10.0: | 27-37-16-03 |
| UNSPSC: | 30-21-19-17 |
| ROHS: | Conform |
| Type: | SRC-I 2CO P |
| Order No.: | 8869500000 |
| GTIN (EAN): | 4032248614455 |
| Qty.: | 10 pc(s). |
| Width: | 15.8 mm |
| Width (inches): | 0.622 inch |
| Height: | 98 mm |
| Height (inches): | 3.858 inch |
| Depth: | 48.3 mm |
| Depth (inches): | 1.902 inch |
| Net weight: | 39.8 g |
| Humidity: | 40 °C / 93 % rel. humidity, no condensation |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 70 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...70 °C |
| Storage temperature: | -40 °C...70 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Certificate No. (cURus): | E223759 |
| Rated switching voltage: | 250 V AC |
| Max. switching voltage, AC: | 400 V |
| Contact type: | 2 CO contact |
| Rail: | TS 35 |
| Colour: | black |
| UL 94 flammability rating: | V-0 |
| Rated voltage: | 250 V |
| Surge voltage category: | III |
| Pollution severity: | 2 |
| Insulating material group: | IIIa |
| Protection degree: | IP20 |
| Type of isolation at input and output: | reinforced insulation |
| Creepage and clearance distance input – output: | ≥ 10 mm |
| Type of isolation at neighbouring contacts: | Functional insulation |
| Standards: | IEC 61810-1, UL508 |
| Certificate No. (CSA): | 249409-2295474 |
| Certificate No. (cURus): | E223759 |
| Wire connection method: | PUSH IN |
| Stripping length, rated connection: | 12 mm |
| Clamping range, rated connection: | 1.5 mm² |
| Clamping range, min.: | 0.75 mm² |
| Clamping range, max.: | 1.5 mm² |
| Wire cross-section, solid, min.: | 0.75 mm² |
| Wire cross-section, solid, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.75 mm² |
| Wire connection cross section, finely stranded, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.75 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 0.75 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min.: | 0.75 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max.: | 1 mm² |
| Blade size: | 0.6 x 3.5 mm |
| Pitch in mm (P): | 5 mm |
| Product information: | 1) For full continuous current (16 A), relay connections 11–21, 12–22 and 14–24 must be bridged. |
| ETIM 6.0: | EC001456 |
| ETIM 7.0: | EC001456 |
| eClass 9.0: | 27-37-16-03 |
| eClass 9.1: | 27-37-16-03 |
| eClass 10.0: | 27-37-16-03 |
| UNSPSC: | 30-21-19-17 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.04 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
