Product
Weidmueller
7789229100
PAC-S300-SD25-V1-10M
Request a Quote

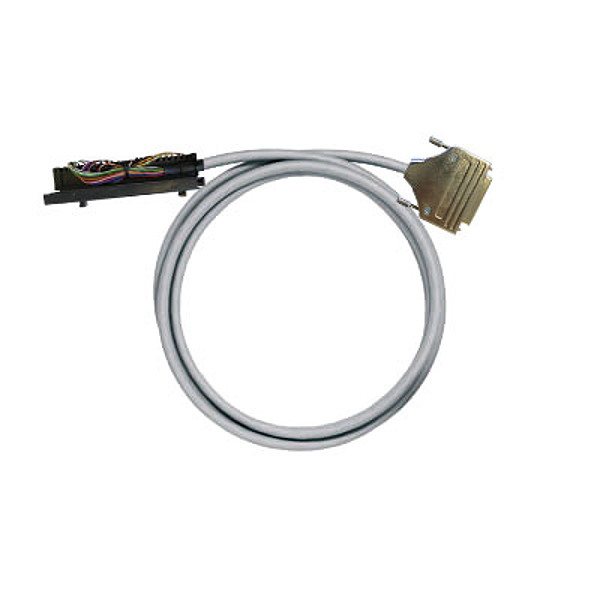

Image copyright: Weidmueller
Weidmueller 7789229100
PAC-S300-SD25-V1-10M
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | PAC-S300-SD25-V1-10M |
| Order No.: | 7789229100 |
| Version: | Pre-assembled cable, PAC, Cable LiYCY, 0.25 mm² |
| GTIN (EAN): | 4032248346097 |
| Qty.: | 1 pc(s). |
| Net weight: | 1,599 g |
| Operating temperature, max.: | 50 °C |
| Operating temperature, min.: | -10 °C |
| Storage temperature, max.: | 60 °C |
| Storage temperature, min.: | -10 °C |
| Operating temperature: | -10...50 °C |
| Storage temperature: | -10...60 °C |
| Connector PLC side: | SIEMENS S7300 6ES7921-3AH00-1AA0 20P |
| Interface connector: | SUB-D FEMALE 25P |
| Number of poles, min.: | 25-pole |
| Outer diameter: | 10.15 ± 1 mm |
| Cable: | Cable LiYCY |
| Cable length: | 10 m |
| Material: | PVC |
| Wire cross-section: | 0.25 mm² |
| Rated voltage (text): | ≤ 60 Vdc ≤ 25 Vac |
| Permissible current strength per path, max.: | 1 A |
| Total current, max.: | 3 A |
| Resistance: | 80 mΩ/m |
| High voltage test: | 1 KV/1s |
| ETIM 6.0: | EC000237 |
| ETIM 7.0: | EC000237 |
| eClass 9.0: | 27-24-22-20 |
| eClass 9.1: | 27-24-22-20 |
| eClass 10.0: | 27-24-22-20 |
| ROHS: | Conform |
| Type: | PAC-S300-SD25-V1-10M |
| Order No.: | 7789229100 |
| Version: | Pre-assembled cable, PAC, Cable LiYCY, 0.25 mm² |
| GTIN (EAN): | 4032248346097 |
| Qty.: | 1 pc(s). |
| Net weight: | 1,599 g |
| Operating temperature, max.: | 50 °C |
| Operating temperature, min.: | -10 °C |
| Storage temperature, max.: | 60 °C |
| Storage temperature, min.: | -10 °C |
| Operating temperature: | -10...50 °C |
| Storage temperature: | -10...60 °C |
| Connector PLC side: | SIEMENS S7300 6ES7921-3AH00-1AA0 20P |
| Interface connector: | SUB-D FEMALE 25P |
| Number of poles, min.: | 25-pole |
| Outer diameter: | 10.15 ± 1 mm |
| Cable: | Cable LiYCY |
| Cable length: | 10 m |
| Material: | PVC |
| Wire cross-section: | 0.25 mm² |
| Rated voltage (text): | ≤ 60 Vdc ≤ 25 Vac |
| Permissible current strength per path, max.: | 1 A |
| Total current, max.: | 3 A |
| Resistance: | 80 mΩ/m |
| High voltage test: | 1 KV/1s |
| ETIM 6.0: | EC000237 |
| ETIM 7.0: | EC000237 |
| eClass 9.0: | 27-24-22-20 |
| eClass 9.1: | 27-24-22-20 |
| eClass 10.0: | 27-24-22-20 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 1.599 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
