Product
Weidmueller
7760056347
SDI 2CO ECO
Request a Quote

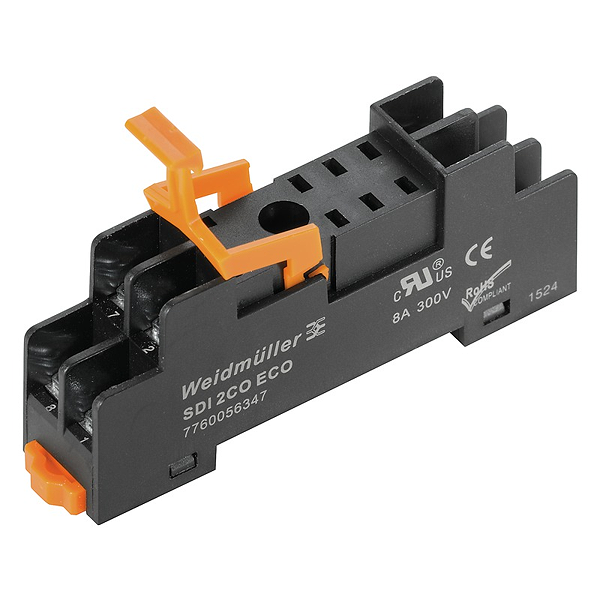

Image copyright: Weidmueller
Weidmueller 7760056347
SDI 2CO ECO
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | SDI 2CO ECO |
| Order No.: | 7760056347 |
| Version: | D-SERIES DRI, Relay bases, Number of contacts: 2, CO contact, Continuous current: 8 A, Screw connection |
| GTIN (EAN): | 6944169739941 |
| Qty.: | 10 pc(s). |
| Width: | 15.8 mm |
| Width (inches): | 0.622 inch |
| Height: | 73.3 mm |
| Height (inches): | 2.886 inch |
| Depth: | 29.2 mm |
| Depth (inches): | 1.15 inch |
| Net weight: | 23 g |
| Humidity: | 35...85 % rel. humidity, no condensation |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...70 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Rated switching voltage: | 250 V AC |
| Max. switching voltage, AC: | 250 V |
| Continuous current: | 8 A |
| Contact type: | 2 CO contact |
| Version: | flat design |
| Rail: | TS 35 |
| Colour: | black |
| UL 94 flammability rating: | V-0 |
| Rated voltage: | 250 V |
| Surge voltage category: | III |
| Pollution severity: | 2 |
| Insulating material group: | IIIb |
| Protection degree: | IP10 |
| Creepage and clearance distance input – output: | ≥ 3 mm |
| Impulse withstand voltage: | 4.8 kV (1.2/50 µs) |
| Standards: | EN 60664-1:2007, EN 61000-6-2:2005, EN 61000-6-4:2007 + A1:2011, UL 508 |
| Wire connection method: | Screw connection |
| Stripping length, rated connection: | 8 mm |
| Tightening torque, min.: | 0.5 Nm |
| Tightening torque, max.: | 0.8 Nm |
| Clamping range, rated connection: | 1.5 mm² |
| Clamping range, min.: | 0.5 mm² |
| Clamping range, max.: | 2.5 mm² |
| Wire cross-section, solid, min.: | 0.5 mm² |
| Wire cross-section, solid, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min.: | 0.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max.: | 1.5 mm² |
| Wire connection: | M3 ring cable lug (insulated) |
| Blade size: | size PH1 |
| ETIM 6.0: | EC001456 |
| ETIM 7.0: | EC001456 |
| eClass 9.0: | 27-37-16-03 |
| eClass 9.1: | 27-37-16-03 |
| eClass 10.0: | 27-37-16-03 |
| ROHS: | Conform |
| Type: | SDI 2CO ECO |
| Order No.: | 7760056347 |
| Version: | D-SERIES DRI, Relay bases, Number of contacts: 2, CO contact, Continuous current: 8 A, Screw connection |
| GTIN (EAN): | 6944169739941 |
| Qty.: | 10 pc(s). |
| Width: | 15.8 mm |
| Width (inches): | 0.622 inch |
| Height: | 73.3 mm |
| Height (inches): | 2.886 inch |
| Depth: | 29.2 mm |
| Depth (inches): | 1.15 inch |
| Net weight: | 23 g |
| Humidity: | 35...85 % rel. humidity, no condensation |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...70 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Rated switching voltage: | 250 V AC |
| Max. switching voltage, AC: | 250 V |
| Continuous current: | 8 A |
| Contact type: | 2 CO contact |
| Version: | flat design |
| Rail: | TS 35 |
| Colour: | black |
| UL 94 flammability rating: | V-0 |
| Rated voltage: | 250 V |
| Surge voltage category: | III |
| Pollution severity: | 2 |
| Insulating material group: | IIIb |
| Protection degree: | IP10 |
| Creepage and clearance distance input – output: | ≥ 3 mm |
| Impulse withstand voltage: | 4.8 kV (1.2/50 µs) |
| Standards: | EN 60664-1:2007, EN 61000-6-2:2005, EN 61000-6-4:2007 + A1:2011, UL 508 |
| Wire connection method: | Screw connection |
| Stripping length, rated connection: | 8 mm |
| Tightening torque, min.: | 0.5 Nm |
| Tightening torque, max.: | 0.8 Nm |
| Clamping range, rated connection: | 1.5 mm² |
| Clamping range, min.: | 0.5 mm² |
| Clamping range, max.: | 2.5 mm² |
| Wire cross-section, solid, min.: | 0.5 mm² |
| Wire cross-section, solid, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min.: | 0.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max.: | 1.5 mm² |
| Wire connection: | M3 ring cable lug (insulated) |
| Blade size: | size PH1 |
| ETIM 6.0: | EC001456 |
| ETIM 7.0: | EC001456 |
| eClass 9.0: | 27-37-16-03 |
| eClass 9.1: | 27-37-16-03 |
| eClass 10.0: | 27-37-16-03 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.027 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
