Product
Weidmueller
7760056331
DRI424110L
Request a Quote

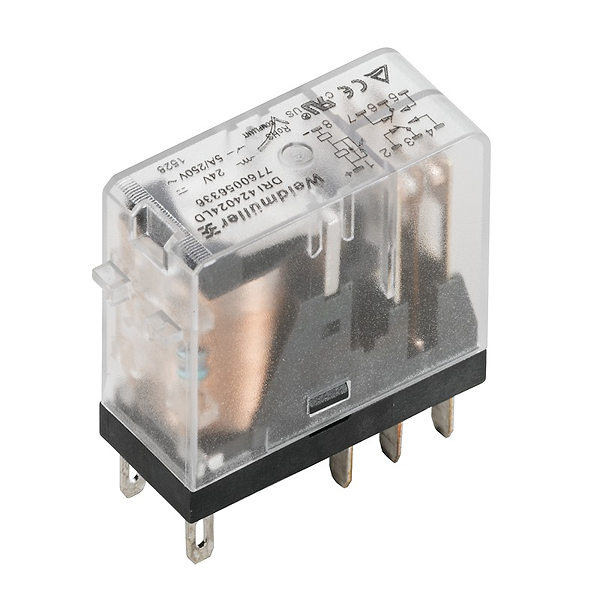

Image copyright: Weidmueller
Weidmueller 7760056331
DRI424110L
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | DRI424110L |
| Order No.: | 7760056331 |
| Version: | D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 110 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm) |
| GTIN (EAN): | 6944169739781 |
| Qty.: | 20 pc(s). |
| Width: | 13 mm |
| Width (inches): | 0.512 inch |
| Height: | 31 mm |
| Height (inches): | 1.22 inch |
| Depth: | 28 mm |
| Depth (inches): | 1.102 inch |
| Net weight: | 19 g |
| Humidity: | 35...85 % rel. humidity, no condensation |
| Operating temperature, max.: | 55 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...55 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Certificate No. (cURus): | E312083 |
| Rated control voltage: | 110 V DC |
| Rated current DC: | 4,8 mA |
| Power rating: | 530 mW |
| Pull-in/drop-out voltage, typ.: | 82.5 V / 16.5 V DC |
| Coil resistance: | 22800 Ω ± 10 % |
| Status indicator: | Green LED |
| Rated switching voltage: | 250 V AC |
| Max. switching voltage, AC: | 250 V |
| Max. switching voltage, DC: | 250 V |
| Continuous current: | 5 A |
| AC switching capacity (resistive), max.: | 1250 VA |
| DC switching capacity (resistive), max.: | 150 W @ 24 V |
| Switch-on delay: | ≤ 15 ms |
| Switch-off delay: | ≤ 10 ms |
| Min. switching power: | 10 mA @ 12 V, 100 mA @ 5 V |
| Max. switching frequency at rated load: | 0.1 Hz |
| Contact type: | 2 CO contact (AgSnO) |
| Test button: | No |
| Mechanical switch position indicator: | No |
| Colour: | Transparent |
| UL 94 flammability rating: | V-2 |
| Rated voltage: | 300 V |
| Surge voltage category: | III |
| Pollution severity: | 2 |
| Insulating material group: | IIIa |
| Protection degree: | IP20 |
| Creepage and clearance distance input – output: | ≥ 4 mm |
| Impulse withstand voltage: | 5 kV (1.2/50 µs) |
| Standards: | IEC 61810-1, EN 60664-1:2007, EN 61000-6-2:2005, EN 61000-6-4:2007 + A1:2011, UL 508 |
| Certificate No. (cURus): | E312083 |
| Wire connection method: | Flat blade connections (2.5 mm x 0.5 mm) |
| ETIM 6.0: | EC001437 |
| ETIM 7.0: | EC001437 |
| eClass 9.0: | 27-37-16-01 |
| eClass 9.1: | 27-37-16-01 |
| eClass 10.0: | 27-37-16-01 |
| ROHS: | Conform |
| Type: | DRI424110L |
| Order No.: | 7760056331 |
| Version: | D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 110 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm) |
| GTIN (EAN): | 6944169739781 |
| Qty.: | 20 pc(s). |
| Width: | 13 mm |
| Width (inches): | 0.512 inch |
| Height: | 31 mm |
| Height (inches): | 1.22 inch |
| Depth: | 28 mm |
| Depth (inches): | 1.102 inch |
| Net weight: | 19 g |
| Humidity: | 35...85 % rel. humidity, no condensation |
| Operating temperature, max.: | 55 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...55 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Certificate No. (cURus): | E312083 |
| Rated control voltage: | 110 V DC |
| Rated current DC: | 4,8 mA |
| Power rating: | 530 mW |
| Pull-in/drop-out voltage, typ.: | 82.5 V / 16.5 V DC |
| Coil resistance: | 22800 Ω ± 10 % |
| Status indicator: | Green LED |
| Rated switching voltage: | 250 V AC |
| Max. switching voltage, AC: | 250 V |
| Max. switching voltage, DC: | 250 V |
| Continuous current: | 5 A |
| AC switching capacity (resistive), max.: | 1250 VA |
| DC switching capacity (resistive), max.: | 150 W @ 24 V |
| Switch-on delay: | ≤ 15 ms |
| Switch-off delay: | ≤ 10 ms |
| Min. switching power: | 10 mA @ 12 V, 100 mA @ 5 V |
| Max. switching frequency at rated load: | 0.1 Hz |
| Contact type: | 2 CO contact (AgSnO) |
| Test button: | No |
| Mechanical switch position indicator: | No |
| Colour: | Transparent |
| UL 94 flammability rating: | V-2 |
| Rated voltage: | 300 V |
| Surge voltage category: | III |
| Pollution severity: | 2 |
| Insulating material group: | IIIa |
| Protection degree: | IP20 |
| Creepage and clearance distance input – output: | ≥ 4 mm |
| Impulse withstand voltage: | 5 kV (1.2/50 µs) |
| Standards: | IEC 61810-1, EN 60664-1:2007, EN 61000-6-2:2005, EN 61000-6-4:2007 + A1:2011, UL 508 |
| Certificate No. (cURus): | E312083 |
| Wire connection method: | Flat blade connections (2.5 mm x 0.5 mm) |
| ETIM 6.0: | EC001437 |
| ETIM 7.0: | EC001437 |
| eClass 9.0: | 27-37-16-01 |
| eClass 9.1: | 27-37-16-01 |
| eClass 10.0: | 27-37-16-01 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.024 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
