2621860000
HS-FR 9.5-19.1/50 MM W
Type: | HS-FR 9.5-19.1/50 MM W |
Order No.: | 2621860000 |

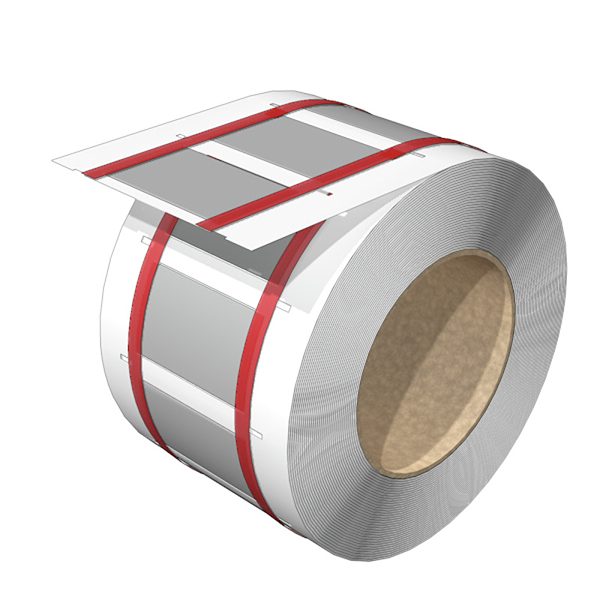

Version: | Conductor and cable markers, 9.5 - 19.1 mm, 49.8 x 30.4 mm, white |
GTIN (EAN): | 4050118625189 |
Qty.: | 400 pc(s). |
Width: | 30.4 mm |
Width (inches): | 1.197 inch |
Height: | 49.8 mm |
Height (inches): | 1.961 inch |
Depth: | 0.77 mm |
Depth (inches): | 0.03 inch |
Net weight: | 1.6 g |
Colour: | white |
Halogen: | No |
Material: | Polyolefine |
Operating temperature range: | -55...125 °C |
Size of labelling field: | 30.4 x 49.8 mm |
Width: | 30.4 mm |
Conductor O.D.: | 9.5 - 19.1 mm |
Conductor O.D., max.: | 19.1 mm |
Conductor O.D., min.: | 9.5 mm |
Conductor cross-section, max.: | 70 mm² |
Conductor cross-section, min.: | 16 mm² |
Halogen: | No |
Rate of shrinkage: | 2:1 |
Recommended shrinking temperature: | 90 °C |
Wire connection cross section AWG, max.: | AWG 2/0 |
Wire connection cross section AWG, min.: | AWG 6 |
ETIM 6.0: | EC001530 |
ETIM 7.0: | EC001530 |
eClass 9.0: | 27-40-04-01 |
eClass 9.1: | 27-40-04-01 |
eClass 10.0: | 27-40-04-01 |
ROHS: | Conform |
Type: | HS-FR 9.5-19.1/50 MM W |
Order No.: | 2621860000 |
Version: | Conductor and cable markers, 9.5 - 19.1 mm, 49.8 x 30.4 mm, white |
GTIN (EAN): | 4050118625189 |
Qty.: | 400 pc(s). |
Width: | 30.4 mm |
Width (inches): | 1.197 inch |
Height: | 49.8 mm |
Height (inches): | 1.961 inch |
Depth: | 0.77 mm |
Depth (inches): | 0.03 inch |
Net weight: | 1.6 g |
Colour: | white |
Halogen: | No |
Material: | Polyolefine |
Operating temperature range: | -55...125 °C |
Size of labelling field: | 30.4 x 49.8 mm |
Width: | 30.4 mm |
Conductor O.D.: | 9.5 - 19.1 mm |
Conductor O.D., max.: | 19.1 mm |
Conductor O.D., min.: | 9.5 mm |
Conductor cross-section, max.: | 70 mm² |
Conductor cross-section, min.: | 16 mm² |
Halogen: | No |
Rate of shrinkage: | 2:1 |
Recommended shrinking temperature: | 90 °C |
Wire connection cross section AWG, max.: | AWG 2/0 |
Wire connection cross section AWG, min.: | AWG 6 |
ETIM 6.0: | EC001530 |
ETIM 7.0: | EC001530 |
eClass 9.0: | 27-40-04-01 |
eClass 9.1: | 27-40-04-01 |
eClass 10.0: | 27-40-04-01 |
ROHS: | Conform |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.003 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
