Weidmueller
2621840000
HS-FR 6.4-12.7/50 MM W
Request a Quote

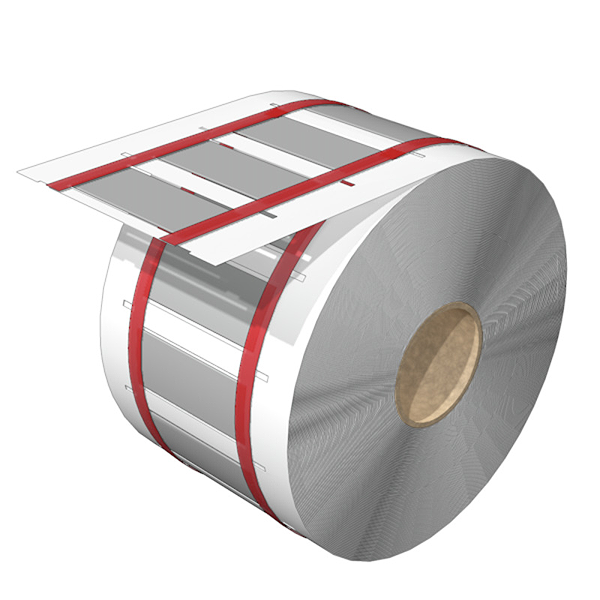

Image copyright: Weidmueller
Weidmueller 2621840000
HS-FR 6.4-12.7/50 MM W
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | HS-FR 6.4-12.7/50 MM W |
| Order No.: | 2621840000 |
| Version: | Conductor and cable markers, 6.4 - 12.7 mm, 49.8 x 19.9 mm, white |
| GTIN (EAN): | 4050118625202 |
| Qty.: | 500 pc(s). |
| Width: | 19.9 mm |
| Width (inches): | 0.783 inch |
| Height: | 49.8 mm |
| Height (inches): | 1.961 inch |
| Depth: | 0.77 mm |
| Depth (inches): | 0.03 inch |
| Net weight: | 1.3 g |
| Colour: | white |
| Halogen: | No |
| Material: | Polyolefine |
| Operating temperature range: | -55...125 °C |
| Size of labelling field: | 19.9 x 49.8 mm |
| Width: | 19.9 mm |
| Conductor O.D.: | 6.4 - 12.7 mm |
| Conductor O.D., max.: | 12.7 mm |
| Conductor O.D., min.: | 6.4 mm |
| Conductor cross-section, max.: | 35 mm² |
| Conductor cross-section, min.: | 6 mm² |
| Halogen: | No |
| Rate of shrinkage: | 2:1 |
| Recommended shrinking temperature: | 90 °C |
| Wire connection cross section AWG, max.: | AWG 2 |
| Wire connection cross section AWG, min.: | AWG 10 |
| ETIM 6.0: | EC001530 |
| ETIM 7.0: | EC001530 |
| eClass 9.0: | 27-40-04-01 |
| eClass 9.1: | 27-40-04-01 |
| eClass 10.0: | 27-40-04-01 |
| ROHS: | Conform |
| Type: | HS-FR 6.4-12.7/50 MM W |
| Order No.: | 2621840000 |
| Version: | Conductor and cable markers, 6.4 - 12.7 mm, 49.8 x 19.9 mm, white |
| GTIN (EAN): | 4050118625202 |
| Qty.: | 500 pc(s). |
| Width: | 19.9 mm |
| Width (inches): | 0.783 inch |
| Height: | 49.8 mm |
| Height (inches): | 1.961 inch |
| Depth: | 0.77 mm |
| Depth (inches): | 0.03 inch |
| Net weight: | 1.3 g |
| Colour: | white |
| Halogen: | No |
| Material: | Polyolefine |
| Operating temperature range: | -55...125 °C |
| Size of labelling field: | 19.9 x 49.8 mm |
| Width: | 19.9 mm |
| Conductor O.D.: | 6.4 - 12.7 mm |
| Conductor O.D., max.: | 12.7 mm |
| Conductor O.D., min.: | 6.4 mm |
| Conductor cross-section, max.: | 35 mm² |
| Conductor cross-section, min.: | 6 mm² |
| Halogen: | No |
| Rate of shrinkage: | 2:1 |
| Recommended shrinking temperature: | 90 °C |
| Wire connection cross section AWG, max.: | AWG 2 |
| Wire connection cross section AWG, min.: | AWG 10 |
| ETIM 6.0: | EC001530 |
| ETIM 7.0: | EC001530 |
| eClass 9.0: | 27-40-04-01 |
| eClass 9.1: | 27-40-04-01 |
| eClass 10.0: | 27-40-04-01 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.001 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
