Product
Weidmueller
2621730000
HS-FR 19.1-38.1/25 MM Y
Request a Quote

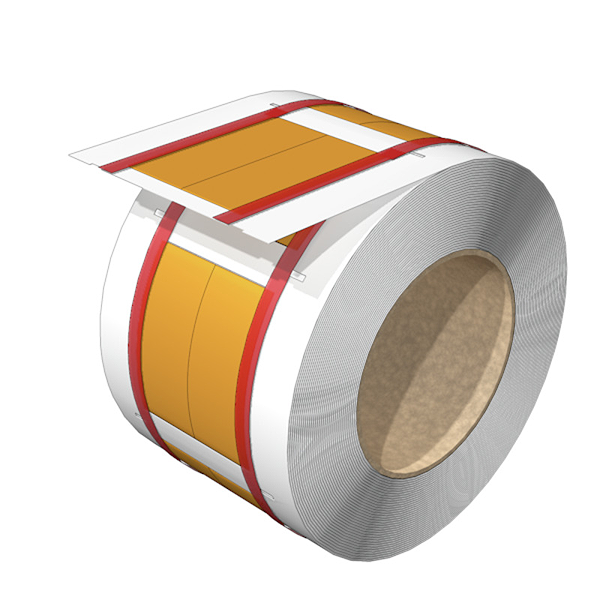

Image copyright: Weidmueller
Weidmueller 2621730000
HS-FR 19.1-38.1/25 MM Y
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | HS-FR 19.1-38.1/25 MM Y |
| Order No.: | 2621730000 |
| Version: | Conductor and cable markers, 19.1 - 38.1 mm, 24.9 x 60.8 mm, yellow |
| GTIN (EAN): | 4050118625318 |
| Qty.: | 200 pc(s). |
| Width: | 60.8 mm |
| Width (inches): | 2.394 inch |
| Height: | 24.9 mm |
| Height (inches): | 0.98 inch |
| Depth: | 0.77 mm |
| Depth (inches): | 0.03 inch |
| Net weight: | 3.2 g |
| Colour: | yellow |
| Halogen: | No |
| Material: | Polyolefine |
| Operating temperature range: | -55...125 °C |
| Size of labelling field: | 60.8 x 24.9 mm |
| Width: | 60.8 mm |
| Conductor O.D.: | 19.1 - 38.1 mm |
| Conductor O.D., max.: | 38.1 mm |
| Conductor O.D., min.: | 19.1 mm |
| Conductor cross-section, max.: | 240 mm² |
| Conductor cross-section, min.: | 70 mm² |
| Halogen: | No |
| Rate of shrinkage: | 2:1 |
| Recommended shrinking temperature: | 90 °C |
| Wire connection cross section AWG, max.: | AWG 450 MCM |
| Wire connection cross section AWG, min.: | AWG 2/0 |
| ETIM 6.0: | EC001530 |
| ETIM 7.0: | EC001530 |
| eClass 9.0: | 27-40-04-01 |
| eClass 9.1: | 27-40-04-01 |
| eClass 10.0: | 27-40-04-01 |
| ROHS: | Conform |
| Type: | HS-FR 19.1-38.1/25 MM Y |
| Order No.: | 2621730000 |
| Version: | Conductor and cable markers, 19.1 - 38.1 mm, 24.9 x 60.8 mm, yellow |
| GTIN (EAN): | 4050118625318 |
| Qty.: | 200 pc(s). |
| Width: | 60.8 mm |
| Width (inches): | 2.394 inch |
| Height: | 24.9 mm |
| Height (inches): | 0.98 inch |
| Depth: | 0.77 mm |
| Depth (inches): | 0.03 inch |
| Net weight: | 3.2 g |
| Colour: | yellow |
| Halogen: | No |
| Material: | Polyolefine |
| Operating temperature range: | -55...125 °C |
| Size of labelling field: | 60.8 x 24.9 mm |
| Width: | 60.8 mm |
| Conductor O.D.: | 19.1 - 38.1 mm |
| Conductor O.D., max.: | 38.1 mm |
| Conductor O.D., min.: | 19.1 mm |
| Conductor cross-section, max.: | 240 mm² |
| Conductor cross-section, min.: | 70 mm² |
| Halogen: | No |
| Rate of shrinkage: | 2:1 |
| Recommended shrinking temperature: | 90 °C |
| Wire connection cross section AWG, max.: | AWG 450 MCM |
| Wire connection cross section AWG, min.: | AWG 2/0 |
| ETIM 6.0: | EC001530 |
| ETIM 7.0: | EC001530 |
| eClass 9.0: | 27-40-04-01 |
| eClass 9.1: | 27-40-04-01 |
| eClass 10.0: | 27-40-04-01 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.004 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
