Product
Weidmueller
2614110000
AAP12 2.5 LI GN/OR
Request a Quote

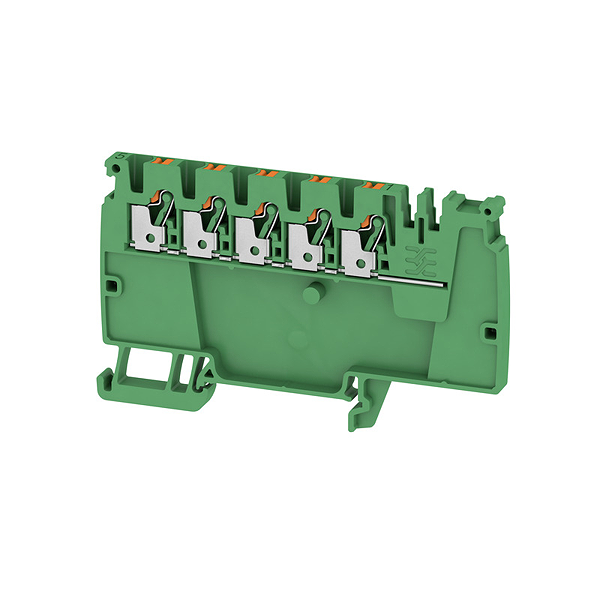

Image copyright: Weidmueller
Weidmueller 2614110000
AAP12 2.5 LI GN/OR
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | AAP12 2.5 LI GN/OR |
| Order No.: | 2614110000 |
| Version: | Modular distribution terminals, 2.5 mm², 800, 24 A, green |
| GTIN (EAN): | 4050118618020 |
| Qty.: | 50 pc(s). |
| Width: | 5.1 mm |
| Width (inches): | 0.201 inch |
| Height: | 89 mm |
| Height (inches): | 3.504 inch |
| Depth: | 53.5 mm |
| Depth (inches): | 2.106 inch |
| Depth including DIN rail: | 54 mm |
| Net weight: | 12.674 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | Wemid |
| Colour: | green |
| UL 94 flammability rating: | V-0 |
| Certificate No. (ATEX): | TUEV17ATEX8031U |
| Certificate No. (IECEX): | IECEXTUR17.0016U |
| Max. voltage (ATEX): | 690 V |
| Current (ATEX): | 20 A |
| Wire cross section max. (ATEX): | 2.5 mm² |
| Max. voltage (IECEX): | 690 V |
| Current (IECEX): | 20 A |
| Wire cross section max. (IECEX): | 2.5 mm² |
| Installation advice: | Rail |
| Clamping range, max.: | 2.5 mm² |
| Clamping range, min.: | 0.14 mm² |
| Connection cross-section, stranded, max.: | 2.5 mm² |
| Connection cross-section, stranded, min.: | 0.5 mm² |
| Twin wire-end ferrules, max.: | 0.75 mm² |
| Twin wire-end ferrules, min.: | 0.5 mm² |
| Wire connection cross section AWG, max.: | AWG 12 |
| Wire connection cross section AWG, min.: | AWG 28 |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 2.5 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 800 |
| Rated voltage to adjoining terminal: | 800 V |
| Rated current: | 24 A |
| Standards: | IEC/EN 60947-7-1:2009 |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| Type: | AAP12 2.5 LI GN/OR |
| Order No.: | 2614110000 |
| Version: | Modular distribution terminals, 2.5 mm², 800, 24 A, green |
| GTIN (EAN): | 4050118618020 |
| Qty.: | 50 pc(s). |
| Width: | 5.1 mm |
| Width (inches): | 0.201 inch |
| Height: | 89 mm |
| Height (inches): | 3.504 inch |
| Depth: | 53.5 mm |
| Depth (inches): | 2.106 inch |
| Depth including DIN rail: | 54 mm |
| Net weight: | 12.674 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | Wemid |
| Colour: | green |
| UL 94 flammability rating: | V-0 |
| Certificate No. (ATEX): | TUEV17ATEX8031U |
| Certificate No. (IECEX): | IECEXTUR17.0016U |
| Max. voltage (ATEX): | 690 V |
| Current (ATEX): | 20 A |
| Wire cross section max. (ATEX): | 2.5 mm² |
| Max. voltage (IECEX): | 690 V |
| Current (IECEX): | 20 A |
| Wire cross section max. (IECEX): | 2.5 mm² |
| Installation advice: | Rail |
| Clamping range, max.: | 2.5 mm² |
| Clamping range, min.: | 0.14 mm² |
| Connection cross-section, stranded, max.: | 2.5 mm² |
| Connection cross-section, stranded, min.: | 0.5 mm² |
| Twin wire-end ferrules, max.: | 0.75 mm² |
| Twin wire-end ferrules, min.: | 0.5 mm² |
| Wire connection cross section AWG, max.: | AWG 12 |
| Wire connection cross section AWG, min.: | AWG 28 |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 2.5 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 800 |
| Rated voltage to adjoining terminal: | 800 V |
| Rated current: | 24 A |
| Standards: | IEC/EN 60947-7-1:2009 |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.015 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
