2584880000
CABTITE SE 2/6.5 SML GY
Type: | CABTITE SE 2/6.5 SML GY |
Order No.: | 2584880000 |

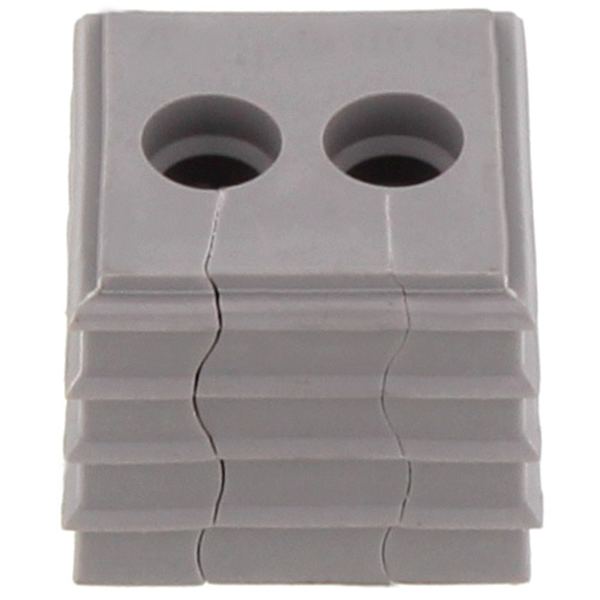

Version: | Sealing element, Cabtite (cable entry system), TPE, Light Grey, Height: 20.3 mm, Width: 20.3, Depth: 17.7 mm, -40 °C…90 °C, IP54, IP65, IP66 |
GTIN (EAN): | 4050118615531 |
Qty.: | 10 pc(s). |
Width: | 20.3 |
Width (inches): | 0.799 inch |
Height: | 20.3 mm |
Height (inches): | 0.799 inch |
Depth: | 17.7 mm |
Depth (inches): | 0.697 inch |
Net weight: | 5.9 g |
UL 94 flammability rating: | V-0 |
Sealing element: | 1 small sealing element |
Outer cable diameter, min.: | 6.5 mm |
Outer cable diameter, max.: | 7 mm |
Halogen: | No |
Silicone: | No |
Material: | TPE |
ETIM 6.0: | EC000879 |
ETIM 7.0: | EC000879 |
eClass 9.0: | 27-14-44-21 |
eClass 9.1: | 27-14-44-21 |
eClass 10.0: | 27-14-44-21 |
ROHS: | Conform |
Type: | CABTITE SE 2/6.5 SML GY |
Order No.: | 2584880000 |
Version: | Sealing element, Cabtite (cable entry system), TPE, Light Grey, Height: 20.3 mm, Width: 20.3, Depth: 17.7 mm, -40 °C…90 °C, IP54, IP65, IP66 |
GTIN (EAN): | 4050118615531 |
Qty.: | 10 pc(s). |
Width: | 20.3 |
Width (inches): | 0.799 inch |
Height: | 20.3 mm |
Height (inches): | 0.799 inch |
Depth: | 17.7 mm |
Depth (inches): | 0.697 inch |
Net weight: | 5.9 g |
UL 94 flammability rating: | V-0 |
Sealing element: | 1 small sealing element |
Outer cable diameter, min.: | 6.5 mm |
Outer cable diameter, max.: | 7 mm |
Halogen: | No |
Silicone: | No |
Material: | TPE |
ETIM 6.0: | EC000879 |
ETIM 7.0: | EC000879 |
eClass 9.0: | 27-14-44-21 |
eClass 9.1: | 27-14-44-21 |
eClass 10.0: | 27-14-44-21 |
ROHS: | Conform |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.007 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
